Fleck Duplex 9000 Water Softener
Price range: £1,055.00 through £2,875.00
Fleck are one of the most established global brands in water softening systems supplying a wide range of water treatment solutions. One of the three brands of Pentair control valves manufactured in EMEA region they cover a wide range of applications for softening or filtration purposes in residential, commercial or industrial environments, for hot or cold water. Over the past decades, Fleck has demonstrated a proven record of performance and reliability year after year.
Fleck offers both simplex and duplex systems the difference being the quantity of softened water required over a 24 hour period: duplex systems are able to run for longer periods than simplex.
The softeners are manufactured in a range of volumes depending on the application and with time controlled or meter controlled valve options.
UK installation, commissioning and maintenance packages available on request. Call 01773 521437 for a quote.
Please note All our FLECK vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.
General Conditions for Installation
- Connection Inlet & Outlet: 1” BSPF
- Drain Connection*: ½” Hose barb
- Electrical Rating: 230-24V / 50 Hz
- Power Rating: 8 watts
- Minimum Inlet Pressure: 200 kPa (2 Bar)
- Maximum Inlet Pressure: 700 kPa (7 Bar)
- Vacuum: Not permitted
- Average Pressure Loss**: 100 kPa (1 Bar)
- Maximum Water Temperature: 43ºc
* Open drain required
** It is recommended that a 20pm pre-cartridge filter be installed prior to the inlet of the water softener

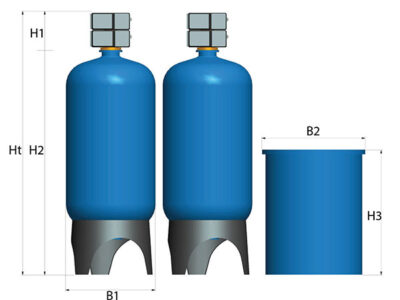

Dimensions (mm)
| Resin Litres | Valve H1 | Vessel H2 | Vessel B1 | Brine Tank H3 | Brine Tank B2 | Softener Ht | Inlet/Outlet |
|---|---|---|---|---|---|---|---|
| 10 | 170 | 449 | 208 | 780 | 590 | 619 | 1″ |
| 20 | 170 | 904 | 208 | 780 | 590 | 1074 | 1″ |
| 25 | 170 | 905 | 233 | 780 | 590 | 1075 | 1″ |
| 30 | 170 | 905 | 257 | 780 | 590 | 1075 | 1″ |
| 40 | 170 | 1124 | 257 | 830 | 670 | 1294 | 1″ |
| 50 | 170 | 1387 | 257 | 830 | 670 | 1557 | 1″ |
| 60 | 170 | 1235 | 304 | 830 | 670 | 1405 | 1″ |
| 75 | 170 | 1374 | 334 | 1000 | 760 | 1544 | 1″ |
| 100 | 170 | 1660 | 369 | 930 | 870 | 1830 | 1″ |
| 120 | 170 | 1660 | 369 | 1230 | 860 | 1830 | 1″ |
| 140 | 170 | 1660 | 406 | 1230 | 860 | 1830 | 1″ |
Regeneration
- Start: Immediately after reaching the set capacity
- Manual: Manual operation as required
- Volume Immediate: SXT Meter
Remarks:
The interval between regenerations should not be more than 4 days, this is to prevent bacteria growth. Regenerations should be more than 8 hours apart.
Regeneration Water Usage
| Litres of resin | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 75 | 100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Backwash | Litres | 15 | 20 | 25 | 45 | 45 | 75 | 75 | 75 | 105 | 120 | 150 |
| Brining + slow rinse | Litres | 20 | 30 | 50 | 60 | 80 | 85 | 110 | 150 | 180 | 220 | 290 |
| Fast rinse | Litres | 25 | 35 | 45 | 60 | 60 | 75 | 75 | 75 | 105 | 120 | 190 |
| Total | 60 | 85 | 120 | 165 | 185 | 235 | 260 | 300 | 390 | 460 | 630 |
Resin
- Type: Strong acid cation resin – softening, food grade quality
- Life Span: 15 years under normal operating conditions
Ion Exchange
| Litres of resin | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 100 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Softener capacity as CaCO³ | 200ppm | 2.5m³ | 3.7m³ | 5.0m³ | 6.2m³ | 7.5m³ | 10m³ | 12.5m³ | 15m³ | 18.7m³ | 25m³ |
| 250ppm | 2.0m³ | 3.0m³ | 4.0m³ | 5.0m | 6.0m³ | 8.0m³ | 10m³ | 12m³ | 15m³ | 20m³ | |
| 300ppm | 1.6m³ | 2.5m³ | 3.3m³ | 4.1m³ | 5.0m³ | 6.6m³ | 8.3m³ | 10m³ | 12.5m³ | 16.6m³ | |
| Salt consumption | kg/reg | 1.2 | 2.0 | 2.4 | 3 | 3.6 | 4.8 | 6 | 7.2 | 9 | 12 |
Flow Rate
| Litres of resin | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 75 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| nominal m³/hr | 0.5 | 0.8 | 1 | 1.3 | 1.5 | 1.6 | 1.8 | 2.3 | 2.7 | 3 | 3 |
| peak m³/hr | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 1.9 | 2.2 | 2.5 | 3.3 | 4 | 4 |
| minimum metered | 60 Litres/Hour (¾” Meter) - 160 Litres/Hour (1” Meter) | ||||||||||
