Fleck simplex 2910 water softeners

Fleck 2910 water softener and filter valves

Fleck Simplex 2910 Water Softener

Price range: £2,315.00 through £5,915.00

Fleck are one of the most established global brands in water softening systems supplying a wide range of water treatment solutions. One of the three brands of Pentair control valves manufactured in EMEA region they cover a wide range of applications for softening or filtration purposes in residential, commercial or industrial environments, for hot or cold water. Over the past decades, Fleck has demonstrated a proven record of performance and reliability year after year.

Fleck offers both simplex and duplex systems the difference being the quantity of softened water required over a 24 hour period: duplex systems are able to run for longer periods than simplex.

The softeners are manufactured in a range of volumes depending on the application and with time controlled or meter controlled valve options.

UK installation, commissioning and maintenance packages available on request. Call 01773 521437 for a quote.

Please note All our FLECK vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.

General Conditions for Installation

Connection Inlet & Outlet: 2" BSPF
Drain Connection*: 3/4" BSPF
Electrical Rating: 230-24V / 50 Hz
Power Rating: 65 watts
Minimum Inlet Pressure: 200 kPa ( 2 Bar )
Maximum Inlet Pressure: 700 kPa ( 7 Bar )
Vacuum: Not permitted
Average Pressure Loss**: 100 kPa ( 1 Bar )
Maximum Water Temperature: 43°c

* Open drain required

** It is recommended to install a 25μm prefilter prior to the inlet of the water softener

Fleck Simplex 2910 Options

Clear

- +

SKU N/A Categories Fleck Water Softeners, Industrial Water Softeners, Water Softeners

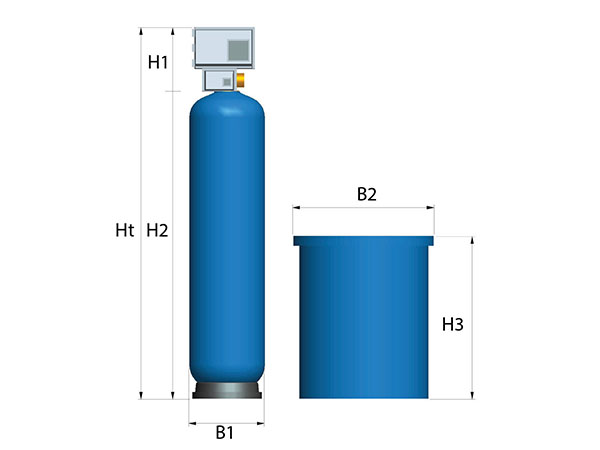

Dimensions (mm)

Resin Litres	Valve H1	Vessel H2	Vessel B1	Brine Tank H3	Brine Tank B2	Softener Ht	Inlet/Outlet
100	320	1830	369	830	670	2150	2″
125	320	1830	369	830	670	2150	2″
150	320	1830	406	1000	760	2150	2″
200	320	1785	552	1000	760	2105	2″
250	320	1785	552	930	870	2105	2″
300	320	1890	610	930	870	2210	2″
350	320	1890	610	1230	860	2210	2″
400	320	2050	770	1230	860	2370	2″
500	320	2050	770	1230	860	2370	2″
700	320	2150	927	1100	1000	2470	2″

Regeneration

Time Clock Version: NXT Time Clock
Volume Delayed or Immediate: NXT Meter
Manual: Manual operation as required

Remarks:

The interval between regenerations should not be more than 4 days. This is to prevent bacteria growth.

Regeneration Water Usage

Litres of Resin		100	125	150	200	250	300	350	400	500	700
1) Backwash	Litres	150	150	210	270	380	570	570	950	950	835
2) Brining + Slow Rinse	Litres	345	345	325	450	465	475	620	650	910	1805
3) Fast Rinse	Litres	190	190	270	370	530	800	800	1330	1330	1340
	Total	685	685	805	1090	1375	1845	1990	2930	3190	3980

Resin

Type: Strong acid cation resin – softening, food grade quality
Life Span: 15 years under normal operating conditions

Ion Exchange

Litres of resin		100	125	150	200	250	300	350	400	500	700
Softener capacity as CaCO³	200ppm	25m³	31.2m³	37.5m³	50m³	62.5m³	75m³	87.5m³	100m³	125m³	175m³
	250ppm	20m³	25m³	30m³	40m³	50m³	60m³	70m³	80m³	100m³	140m³
	300ppm	16.6m³	20.8m³	25m³	33.3m³	41.6m³	50m³	58.3m³	66.6m³	83.3m³	116.6m³
Salt consumption	kg/reg.	13	15	18	26	31	36	46	51	61	71

Flow Rate

Litres of resin	100	125	150	200	250	300	350	400	500	700
nominal m³/hr	3.9	4.4	5.3	7	8.8	11	12	14	18	18
peak m³/hr	4.6	5	6	8	10	12	14	16	20	23
Minimum metered	660 litres/hour
