Siata Simplex V132 Water Softener
Price range: £771.00 through £1,898.00
The user-friendly Siata water softener controls make operation a breeze. The intuitive interface allows you to customise settings and monitor system performance with ease. Pentair SIATA prioritises simplicity without compromising on functionality. Space is often a premium, and that’s why these softeners are designed with a compact footprint. Install them seamlessly into any limited space, and experience the benefits of softened water without sacrificing valuable real estate.
Enjoy the luxury of soft water while also contributing to water and cost savings. Reduced mineral build up means your water-using appliances operate more efficiently, requiring less energy.
Please note All our SIATA vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.
General Conditions for Installation
- Connection Inlet & Outlet: 1" BSP
- Drain Connection*: 3/4" Hose barb
- Electrical Rating: 230-12V / 50 Hz
- Power Rating: 4.6 VA
- Minimum Inlet Pressure: 200 kPa ( 2 Bar )
- Maximum Inlet Pressure: 600 kPa ( 7 Bar )
- Vacuum: Not permitted
- Average Pressure Loss**: 100 kPa ( 1 Bar )
- Maximum Water Temperature: 43°c
* Open drain required
** It is recommended to install a 25μm prefilter prior to the inlet of the water softener

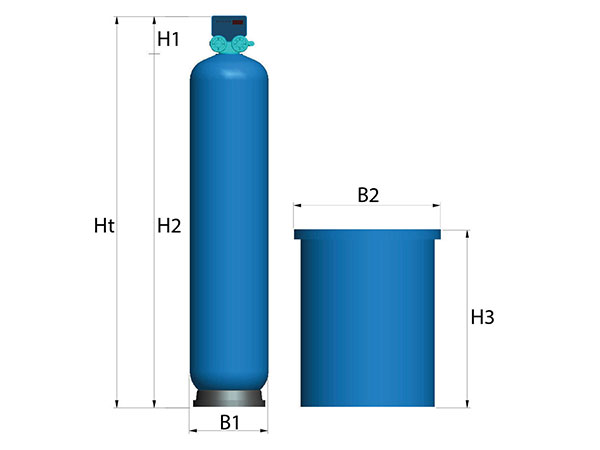

Dimensions (mm)
| Resin Litres | Valve H1 | Vessel H2 | Vessel B1 | Brine Tank H3 | Brine Tank B2 | Softener Ht | Inlet/Outlet |
|---|---|---|---|---|---|---|---|
| 15 | 195 | 904 | 208 | 780 | 590 | 1099 | 1″ |
| 30 | 195 | 905 | 257 | 830 | 670 | 1100 | 1″ |
| 50 | 195 | 1387 | 257 | 830 | 670 | 1582 | 1″ |
| 60 | 195 | 1235 | 304 | 830 | 670 | 1430 | 1″ |
| 75 | 195 | 1374 | 334 | 830 | 670 | 1569 | 1″ |
| 100 | 195 | 1660 | 369 | 1000 | 760 | 1855 | 1″ |
| 125 | 195 | 1660 | 406 | 1000 | 760 | 1855 | 1″ |
| 175 | 195 | 1750 | 469 | 1000 | 760 | 1945 | 1″ |
Regeneration
- Start: Fully programmable
- Manual: Manual operation as required
- Time Clock Version (SFEC): 7 Day
- Volume Delayed or Immediate (SFE):
- Volume
- Time / Volume
- Time
Regeneration Water Usage
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 | |
|---|---|---|---|---|---|---|---|---|---|
| 1) Backwash | Litres | 21 | 48 | 94 | 128 | 128 | 195 | 195 | 226 |
| 2) Brining + slow rinse | Litres | 40 | 83 | 131 | 158 | 197 | 252 | 285 | 471 |
| 3) Fast rinse | Litres | 37 | 64 | 94 | 128 | 128 | 195 | 243 | 283 |
| Total | 98 | 195 | 319 | 414 | 453 | 642 | 723 | 980 |
Resin
- Type: Strong acid cation resin – softening, food grade quality
- Life Span: 15 years under normal operating conditions
Ion Exchange
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 | |
|---|---|---|---|---|---|---|---|---|---|
| Softener capacity as CaCO3 | 200ppm | 3.7m³ | 7.5m³ | 12.5m³ | 15m³ | 18.7m³ | 25m³ | 31.2m³ | 43.7m³ |
| 250ppm | 3m³ | 6m³ | 10m³ | 12m³ | 15m³ | 20m³ | 25m³ | 35m³ | |
| 300ppm | 2.5m³ | 5m³ | 8.3m³ | 10m³ | 12.5m³ | 16.6m³ | 20.8m³ | 29.1m³ | |
| Salt consumption | kg/reg | 1.8 | 3.6 | 6 | 7.2 | 9 | 12 | 15 | 21 |
Flow Rate
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 |
|---|---|---|---|---|---|---|---|---|
| nominal m³/hr | 0.6 | 1.2 | 2 | 2.4 | 3 | 4 | 4.5 | 4.5 |
| minimum metered | 300 litres/hour | |||||||
