Ecosoft Permeate rinsing/blending option for MO24000 and MO36000 4″ RO systems
£380.00
This product is a dual purpose retrofittable assembly for MO24000 and MO36000 reverse osmosis systems.
Parameter/Specification
- Flow rate 120-1080 L/h
- Connection port size 3/4” G 3/4″ female
- Approx. weight (packaged) 2.5 kg
- 0.38 × 0.30 × 0.23 м
Features
- Quick and easy installation
- Possibility of additional installation if necessary
- Detailed instructions on connecting
General Conditions for Installation
This product is a dual purpose retrofittable assembly for MO24000 and MO36000
reverse osmosis systems.
When set up for water blending, the product allows to blend water from any stage of the water treatment process to the RO permeate. The product can also be set up for permeate flushing of membranes in the following cases:
• insufficient supply water flow capacity for normal membrane flush
• longer membrane service life before CI is required, especially on difficult feed water analysis
• supply water treatment process can be size to a smaller flow capacity absent the peak flow demand during membrane flush

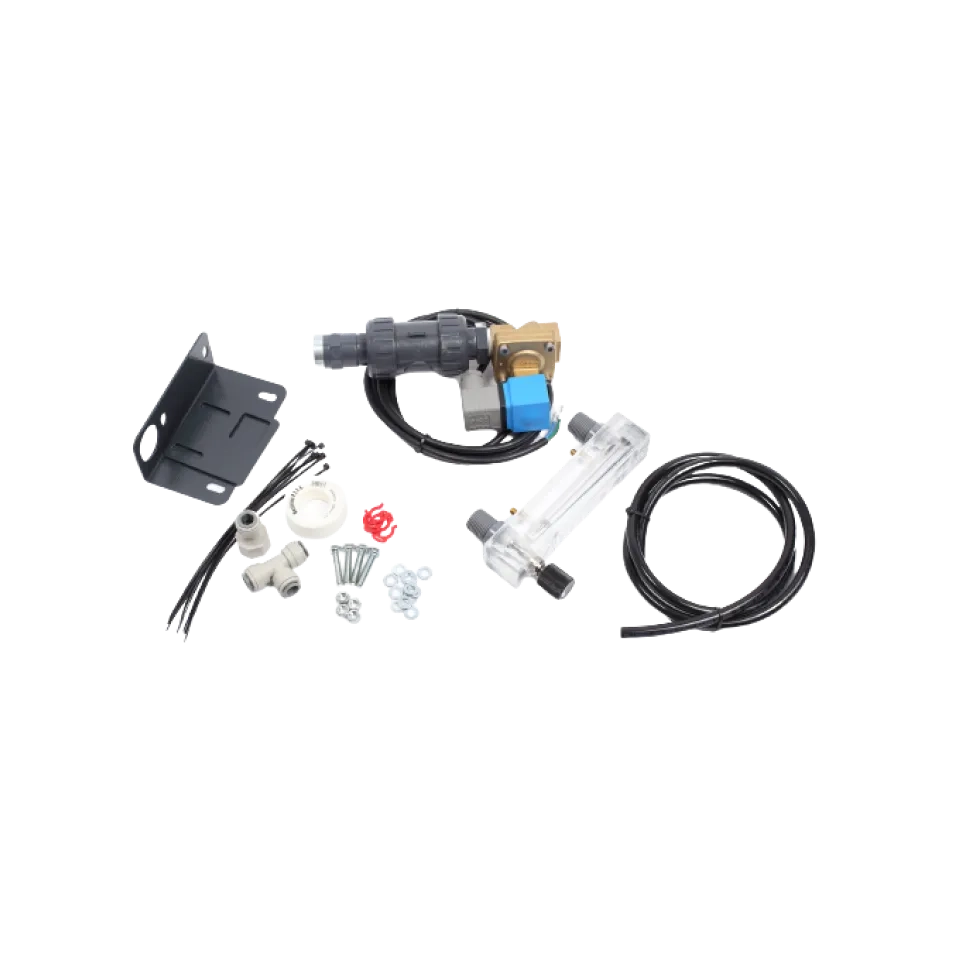

COMPONENTS:
• Solenoid valve
• 120…1080 L/h rotameter
• Piping assembly
• Mounting bracket
• Installation and use manual
Applications
When set up for water blending, the product allows to blend water from any stage of the water treatment process to the RO permeate.
The product can also be set up for permeate flushing of membranes in the following cases:
- insufficient supply water flow capacity fonormal membrane flush
- longer membrane service life before CI is required, especially on difficult feed water analysis
- supply water treatment process can be size to a smaller flow capacity absent the peak flow demand during membrane flush
Components
- Solenoid valve
- 30…240 L/h rotameter
- Piping assembly
- Mounting bracket
- Installation and use manual
Physical parameters
- Connection port size: 1/2″
- Approx.weight (packaged): 1.5 kg
- Dimensions (W × D × H)*: 0.38 × 0.30 × 0.23 m
* Dimensionsmay vary ± 5%
WARNING! Please note that the product can only be set up for either water blending or permeate flushing, but not both! The set is delivered as a separate product to be fitted on an RO system during installation / startup.
