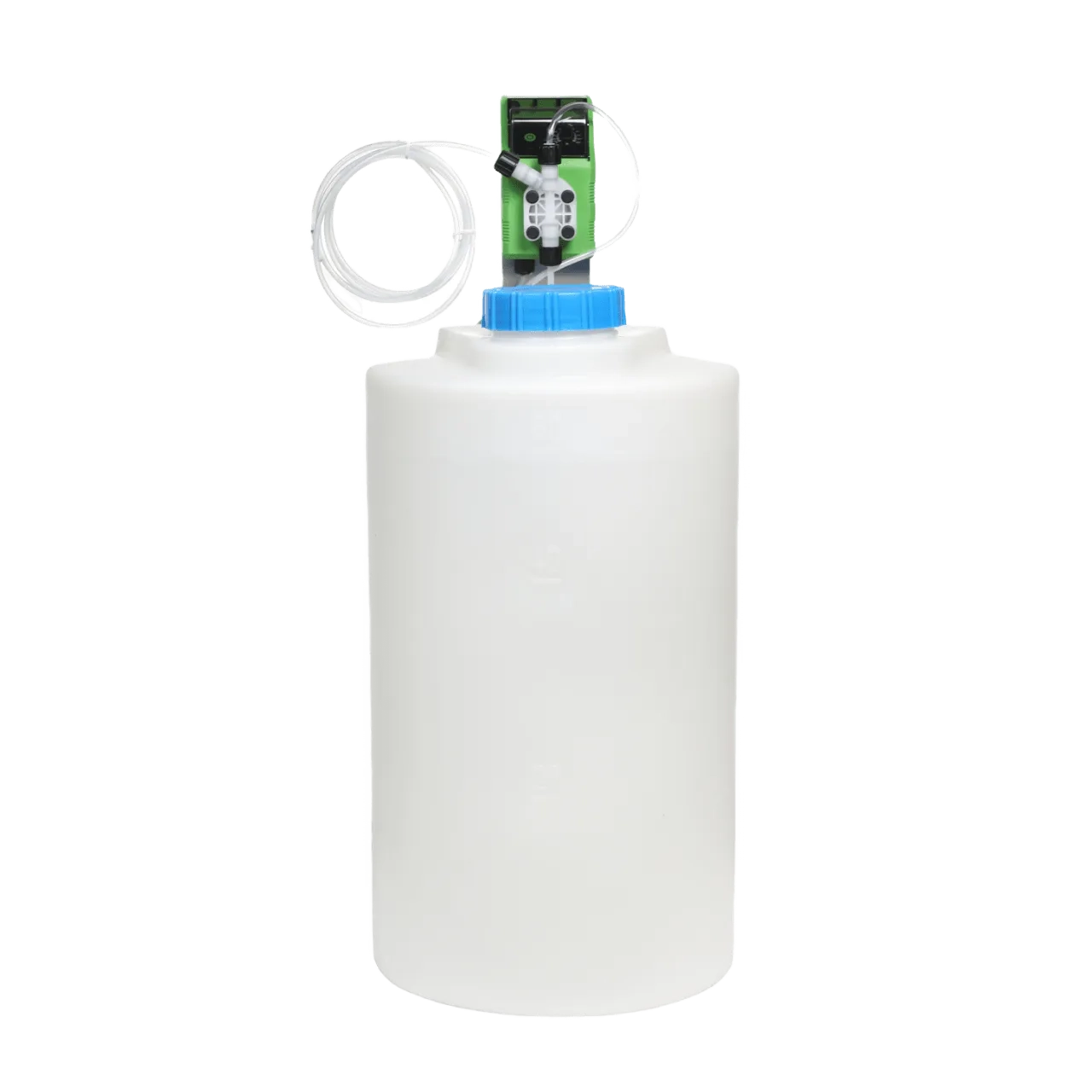

Ecosoft EMEC FACO basic dosing pump set 60 L
£520.00
EMEC FACO basic dosing pump set is intended for dosing of water solutions of chemical reagents used in water treatment for pH adjustment and reduction of water corrosive activity. It might be also used for special-purpose reagents, including antiscalants and biocides.
Operation of the dosing station presents accurate supply of small volumes of reagents from the tank into the water flow line with a dosing pump. The dosing pump sucks the solution out of the reagent tank, and delivers its certain volume to the system.
A filter is installed at the suction valve of the dosing pump to prevent sediments from entering the pump resulting in its clogging.
APPLICATIONS:
Dosing water treatment chemicals for reverse osmosis, ultrafiltration, heating/cooling circuits, boiler feed water, process water, CIP systems, water remineralization, and other additives
Features
Benefits
- Accuracy and ease of setting
- Working pressure up to 10 bar
- Flow rate up to 6 L/h
- Low noise level
- Graphic display and text menu
Key Features
- Simple and reliable design (solenoid pump)
- Built-in electrical protection against power surges and overvoltage
- Broad chemical resistance against broad range of chemicals
- High accuracy with low flow rates
General Conditions for Installation
Main components
- Dosing pump
- Suction valve with foot filter and level probe
- Injection valve
- Pack of hoses
- Chemical tank with mounting bracket
- 500 mL graduated cylinder
- Water meter with pulse output (proportional dosing pumps only)
- Dosing mode: constant
- Nominal back pressure (Pnom): 5 bar
- Flow rate at Pnom: 0.8 L/h
- Maximum back pressure (Pmax): 10 bar
- Flow rate at Pmax: 0.6 L/h
- Volume of one injection: 0.07 mL
- Injection frequency: 0..120 injections/min
- Noise level: 74 dBA
- Dosing pump power: 16 W
- Power supply: 230 V, 50 Hz
- Temperature limit during storage / transportation: -10…+50 °С
- Temperature of dosing solutions: 0…+50 °С
- Material of components which contact with the dosing substance: EPDM
- Reagents tank volume: 60 L
- Reagents tank dimensions (diameter x height): 370 x 640 mm
- Pump (H x W x D, mm): 155 x 95 x 125
TECHNICAL SPECIFICATIONS OF THE DOSING PUMP
- Product D100660
- Dosage mode constant
- Nominal backpressure (Pnom), bar 5
- Capacity under Pnom. , l/h 0,8
- Maximum backpressure (Pmax.), bar 10
- Capacity under Pmax., l/h 0,6
- The volume of a single injection, ml 0,07
- Injection frequency, injections/min 0…120
- Noise level, dBA 74
- Electrical power, W16
- Electrical requirements 230 V, 50 Hz
- Temperature during storage/transportation, °С-10…+50
- Temperature of the dosing solutions, °С 0…+50
- The material of the components that are in contact with the substance to be dosed
- EPDM Tank (Diameter×Height, mm) 370×640
- Pump (Height×Width×Depth, mm) 155×95×125
Related products
-
-
Ecosoft 4″ MO36000 Reverse Osmosis System w/o membranes
Call for Price -

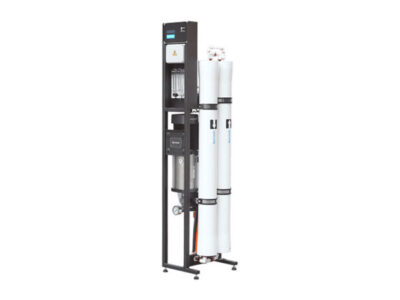

Ecosoft 4″ MO10000 Reverse Osmosis System
