Ecosoft CROSS MAX direct flow reverse osmosis filter
£316.00

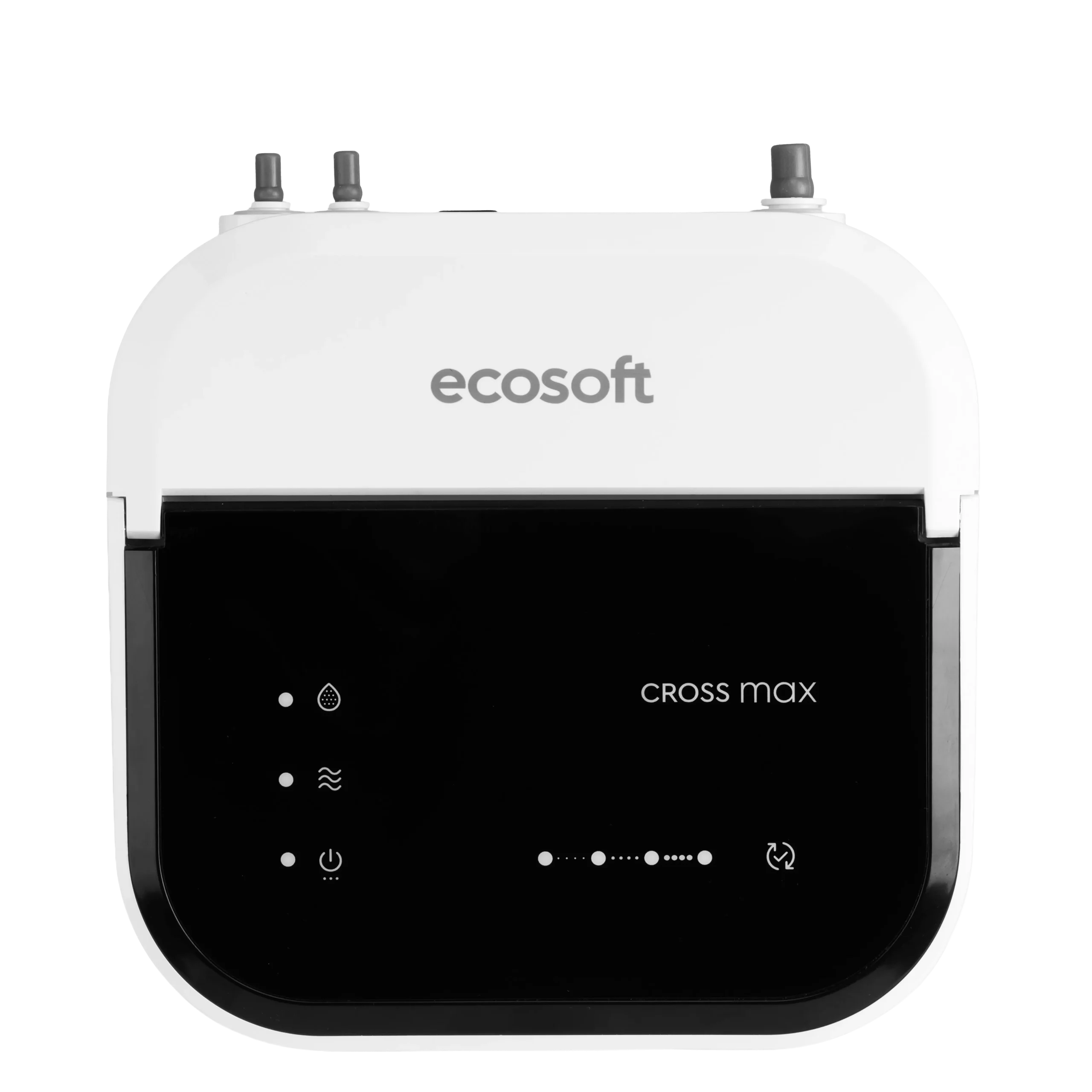

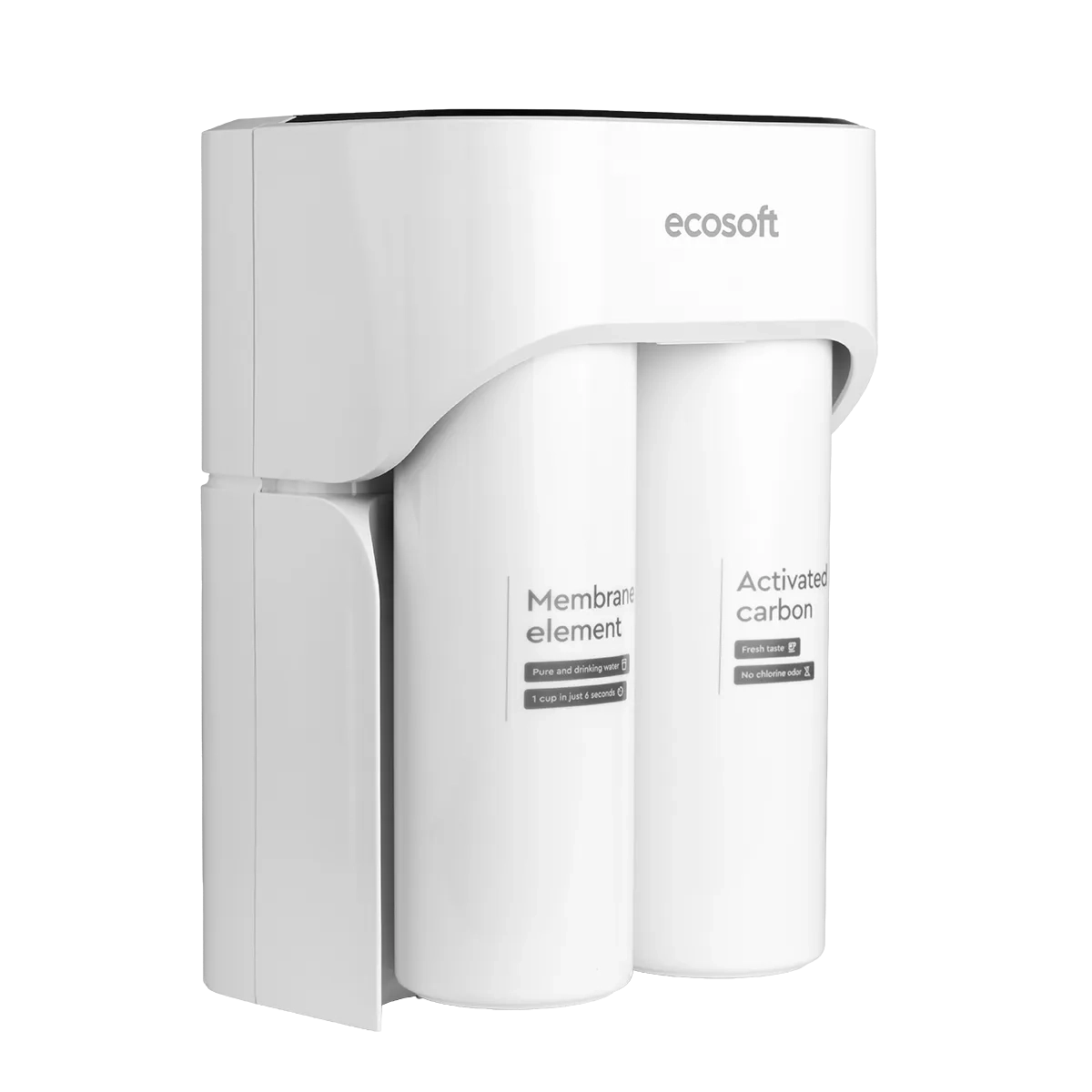

Ecosoft CROSS MAX direct flow reverse osmosis filter is a high-performance tankless water filter designed for under-sink installation in apartments and houses. With purified water flow up to 2 L/min, it provides a steady supply of water for drinking, cooking, and beverages. Its ultra-compact design fits easily into standard kitchen cabinets and saves space under the sink.
The filter uses a four-stage reverse osmosis process to reduce PFAS, mineral impurities, and other dissolved contaminants, while also improving water taste and odor. A prefiltration cartridge protects the RO membrane from sediment and chlorine, while automatic flushing, a cartridge replacement indicator, and overtime shut-off help ensure reliable operation and convenient maintenance.
Features
- High flow rate delivers up to 2 L/min of purified water
- Prefilter protects the RO membrane from sediment and chlorine
- Automatic shut-off helps protect the system from overtime operation
- Replacement indicator reminds you when cartridges need changing
- Ultra-compact tankless design saves valuable space under the sink
- Quick installation and tool-free cartridge replacement
General Conditions for Installation
Source Water Requirements
Parameter/Specification
- pH 6.5–8.5
- Total dissolved solids (TDS) ≤ 1500 mg/L
- Hardness < 500 mg/L CaCO₃
- Chlorine ≤ 0.5 mg/L
- Total iron ≤ 0.3 mg/L
- Manganese ≤ 0.1 mg/L
- Chemical oxygen demand ≤ 5 mg/L O₂
- Total microbial count (TMC) ≤ 50 CFU/100 ml
- Coliform index ≤ 3
System components
- Filter housing
- Set of replacement filters
- Feed water adapter with valve for 1/2'' and 3/8'' connections
- Modern faucet for purified water
- Drain saddle
- Leak sensor
- 1/4'' PE tube, 3 m
- 3/8'' PE tube, 3 m
- Clips
- Power supply
- User manual
To maintain optimal performance, the CROSS MAX water filter requires periodic replacement of its filtration cartridges.
Cartridge replacement frequency

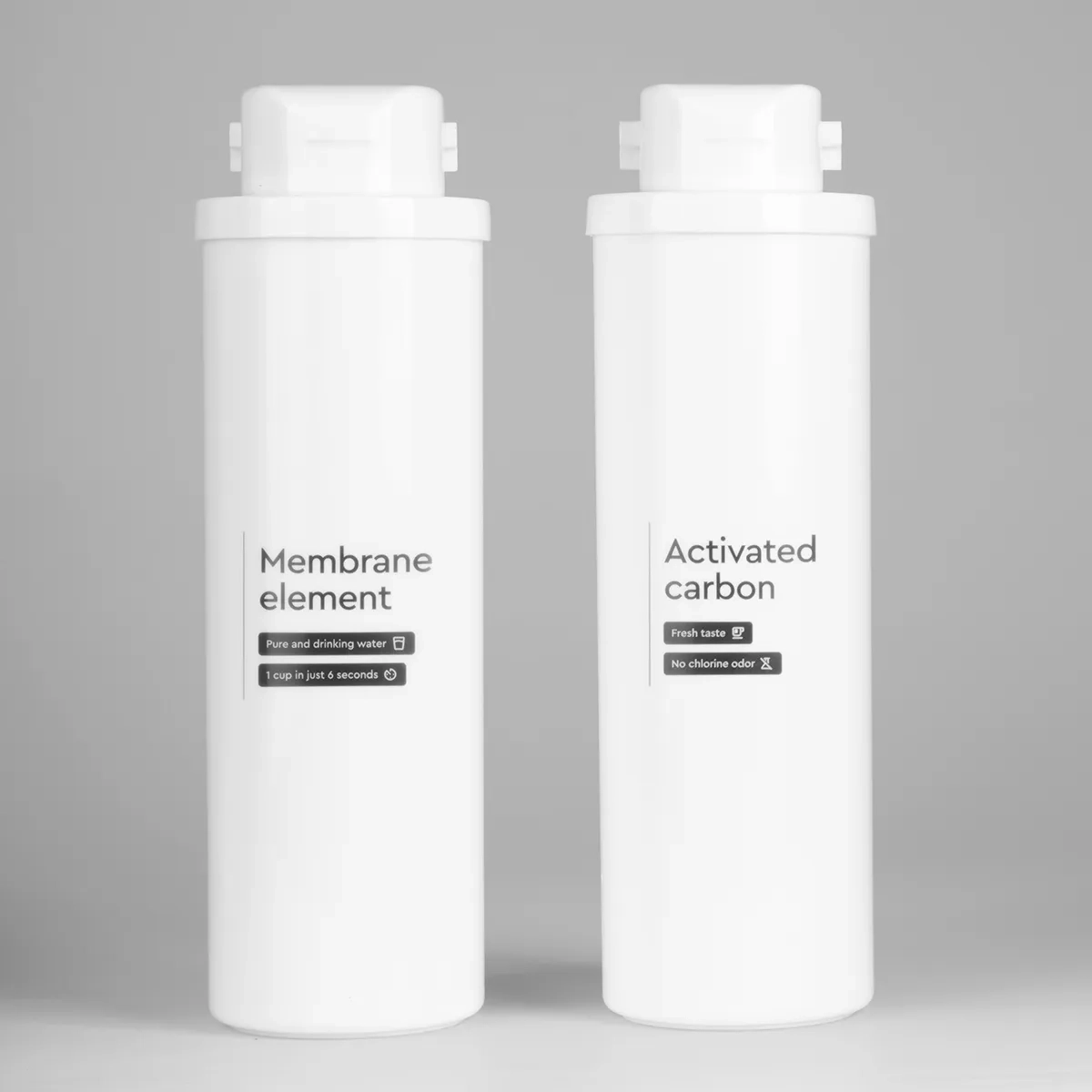

- Replacement prefilter for CROSS MAX (CPVCBDFRO) : replace after 2000 L of purified water (aprox. 12 months).
Removes sediment and reduces chlorine, protecting the RO membrane and ensuring stable filtration performance. - Replacement RO membrane for CROSS MAX (CSVPDRO800) : replace after 2000 L of purified water (aprox. 12 months).
Reduces PFAS, dissolved contaminants, and mineral impurities while providing high-flow filtration performance.
Actual cartridge life depends on the quality of the municipal tap water.
Cartridge life monitoring

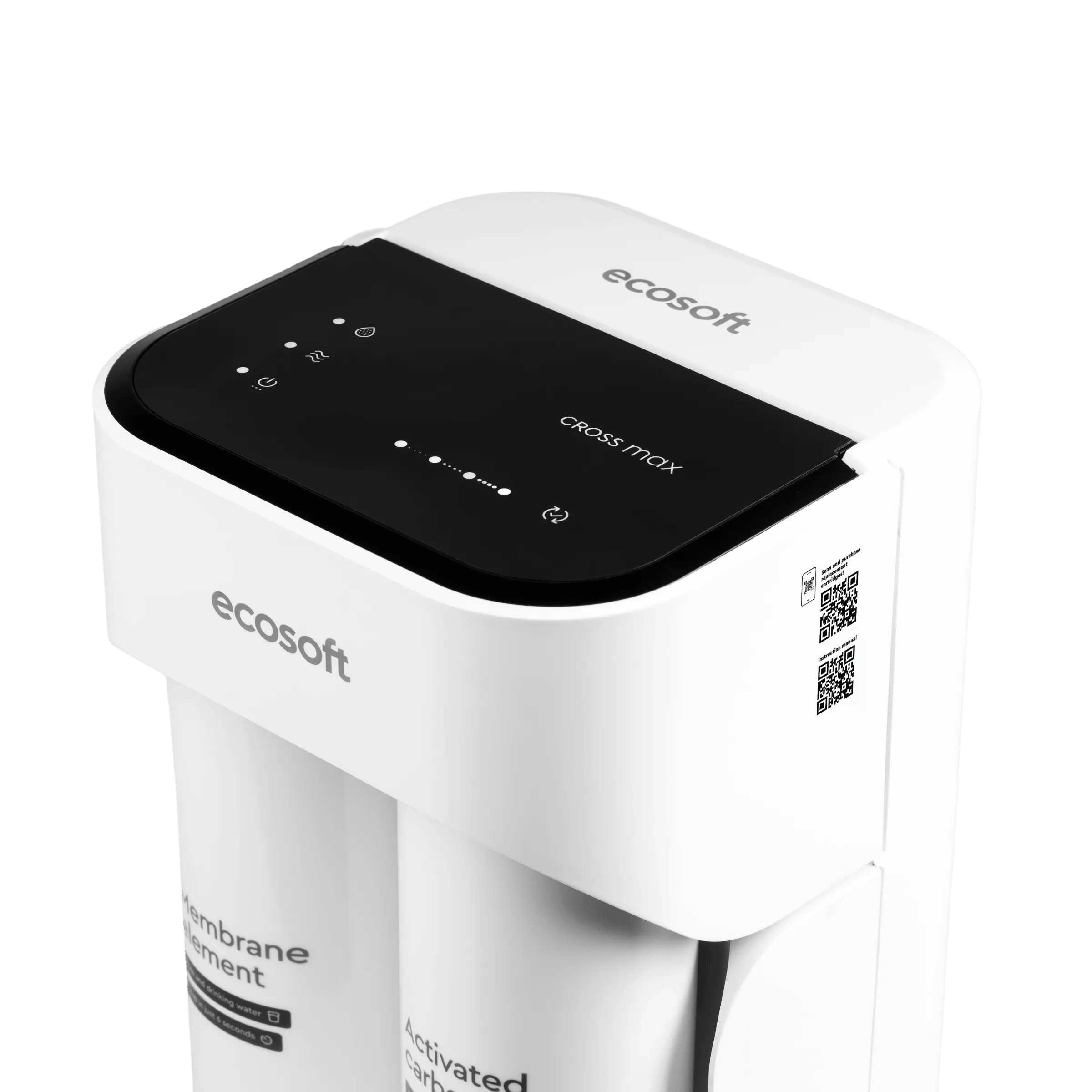

The built-in cartridge life indicator tracks the remaining capacity: one indicator segment turns off every 600 L of purified water, and when only 200 L remain, the last segment turns red. At the same time, three short beeps sound when the drinking faucet is opened.
Easy cartridge replacement
Cartridge replacement is quick and tool-free. After replacing the cartridges, press Restart to reset the indicator and continue using the filter normally.
Automatic flushing
The CROSS MAX filter is equipped with an automatic membrane flushing function that helps maintain stable filtration performance and water quality.
Flushing is performed automatically in the following cases:
- After each use of the drinking faucet — short flushing to remove concentrated impurities from the membrane surface.
- After connecting the filter to the power supply — initial flushing to prepare the filter for operation.
- After 24 hours of inactivity — preventive flushing to maintain membrane performance.
Additionally, the user can activate manual flushing using the button on the filter control panel.
Automatic flushing helps reduce natural diffusion during idle periods and support longer membrane service life.
Automatic filter protection
The CROSS MAX filter is equipped with an overtime protection function. If the filter operates continuously for more than 10 minutes, it automatically shuts off the water supply. This helps to prevent possible water leaks and protect the system from overload and supports safe operation.
Parameter/Specification
- Filter type – Direct flow RO
- Flow capacity – 120 L/h (2 L/min)
- Membrane capacity – 800 GPD
- Glass filling speed (200 mL) – 6 s
- Recovery rate – 67%
- Number of filtration stages – 4
- Number of filter cartridges – 2
- Type of inlet water – Tap water
- TDS (purified water) – 5-15 mg/L
- Mineralization – None
- Smart functions – Yes
- Cartridge replacement reminder – Yes
- Automatic flushing –Yes
- Leak sensor – Yes
- Faucet type – Modern
- Pump – Yes
- Metal rack – No
- Inlet pressure – 1-4 bar
- Electrical requirement – 230 V, 50 Hz
- Water connection type – ½″ and ⅜’’
- Cartridge replacement time – Less than 5 minutes
