Ultraviolet System – Sita SMP Medium Pressure Range

Given the greater power emitted by the lamps, Sita Media Pressure UV systems can treat large water flows while maintaining small dimensions and with a modest number of lamps.

Thanks to the powerful medium pressure UV lamps with polychromatic emission (180-600 nm) the SMP systems are able to break chemical bonds and therefore have a good reduction in water of unwanted chemicals.

These UV systems therefore find interesting applications in POOLS as they reduce the high concentration of combined chlorine, the main cause of irritation and unpleasant odors; they can also be conveniently applied in aqueducts and as a post-treatment of waste water.

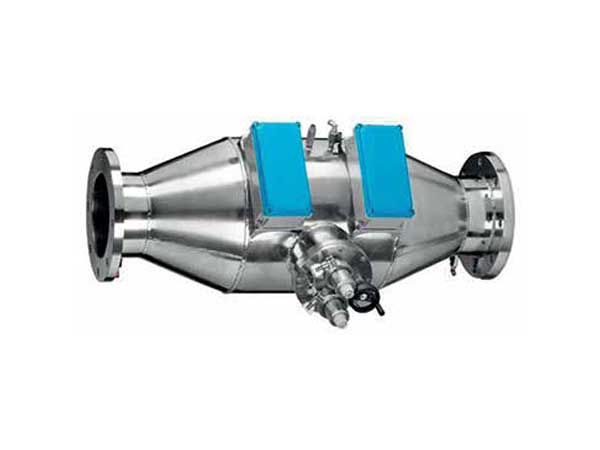

Entirely built in 316L stainless steel, these very compact systems can be installed both vertically and horizontally. To facilitate maintenance operations, the system can be opened on one side.

FLOW: From 25 to 4000 m3 / h

LAMPS: Medium pressure UV lamps. Average life 6,000 – 10,000 hours

MANIFOLD MATERIAL: Polished stainless steel int / ext AISI 316 L

MAX PRESSURE: 10 bar

WATER QUALITY: UV transmittance range: 60 -99% – 1 cm.
