Siata Duplex V132 Water Softener
Price range: £700.00 through £3,783.00
Please note All our SIATA vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.
General Conditions for Installation
- Connection Inlet & Outlet: 1"
- Drain Connection*: 3/4" Hose barb
- Electrical Rating: 230-12V / 50 Hz
- Power Rating: 4.6 VA
- Minimum Inlet Pressure: 200 kPa ( 2 Bar )
- Maximum Inlet Pressure: 600 kPa ( 7 Bar )
- Vacuum: Not permitted
- Average Pressure Loss**: 100 kPa ( 1 Bar )
- Maximum Water Temperature: 43°c
* Open drain required
** It is recommended to install a 25μm prefilter prior to the inlet of the water softener

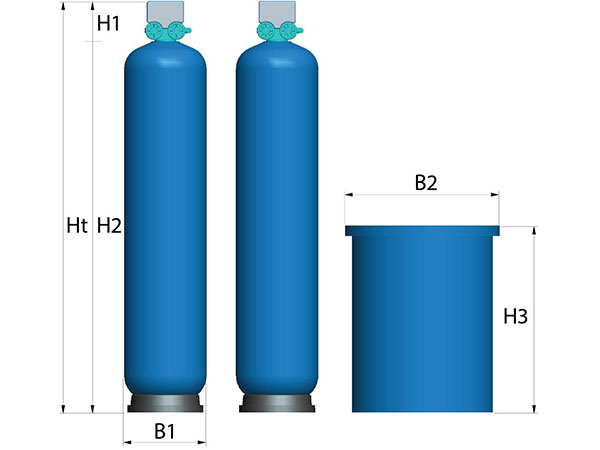

Dimensions (mm)
| Resin Litres | Valve H1 | Vessel H2 | Vessel B1 | Brine Tank H3 | Brine Tank B2 | Softener Ht | Inlet/Outlet |
|---|---|---|---|---|---|---|---|
| 15 | 195 | 904 | 208 | 780 | 590 | 1099 | 1″ |
| 30 | 195 | 905 | 257 | 830 | 670 | 1100 | 1″ |
| 50 | 195 | 1387 | 257 | 830 | 670 | 1582 | 1″ |
| 60 | 195 | 1235 | 304 | 830 | 670 | 1430 | 1″ |
| 75 | 195 | 1374 | 334 | 830 | 670 | 1569 | 1″ |
| 100 | 195 | 1660 | 369 | 1000 | 760 | 1855 | 1″ |
| 125 | 195 | 1660 | 406 | 1000 | 760 | 1855 | 1″ |
| 175 | 195 | 1750 | 469 | 1000 | 760 | 1945 | 1″ |
Regeneration
Start:
- Meter Immediate
- Remote Start
Manual: Manual operation as required
Regeneration Water Usage
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 | |
|---|---|---|---|---|---|---|---|---|---|
| 1) Backwash | Litres | 21 | 48 | 94 | 128 | 128 | 195 | 195 | 226 |
| 2) Brining + slow rinse | Litres | 40 | 83 | 131 | 158 | 197 | 252 | 285 | 471 |
| 3) Fast rinse | Litres | 37 | 64 | 94 | 128 | 128 | 195 | 243 | 283 |
| Total | 98 | 195 | 319 | 414 | 453 | 642 | 723 | 980 |
Resin
- Type: Strong acid cation resin – softening, food grade quality
- Life Span: 15 years under normal operating conditions
Ion Exchange
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 | |
|---|---|---|---|---|---|---|---|---|---|
| Softener capacity as CaCO³ | 200ppm | 3.7m³ | 7.5m³ | 12.5m³ | 15m³ | 18.7m³ | 25m³ | 31.2m³ | 43.7m³ |
| 250ppm | 3m³ | 6m³ | 10m³ | 12m³ | 15m³ | 20m³ | 25m³ | 35m³ | |
| 300ppm | 2.5m³ | 5m³ | 8.3m³ | 10m³ | 12.5m³ | 16.6m³ | 20.8m³ | 29.1m³ | |
| Salt consumption | kg/reg | 1.8 | 3.6 | 6 | 7.2 | 9 | 12 | 15 | 21 |
Flow Rate
| Litres of resin | 15 | 30 | 50 | 60 | 75 | 100 | 125 | 175 |
|---|---|---|---|---|---|---|---|---|
| nominal m³/hr | 0.6 | 1.2 | 2 | 2.4 | 3 | 4 | 4.5 | 4.5 |
| minimum metered | 300 litres/hour | |||||||
