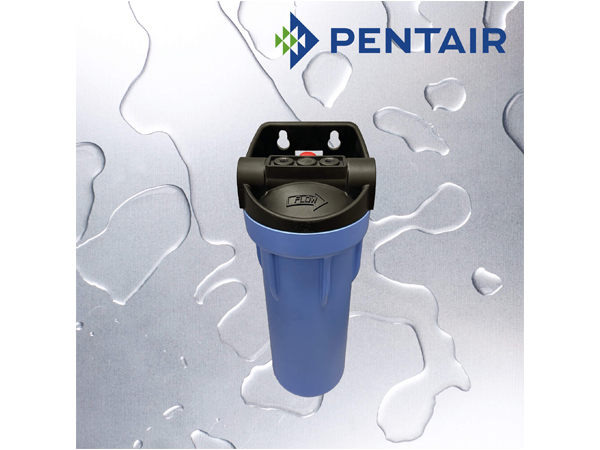

PENTAIR 10″ 3G Blue Housing 3/4″ IB Meter Mount with pressure release – NO103GSTBK/BL3/4BTMMW/PR
£68.00

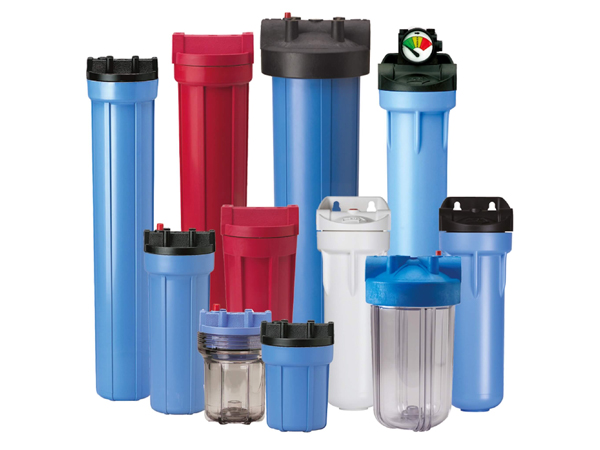

Pentair plastic – filter housings are the accepted world standard for high quality, performance and economy. Offering the most comprehensive range of vessels, they are constructed for long life, durability, ease of use and are available in a variety of materials for specialist applications. Meeting internationally recognised technical standards, Pentair test continually throughout production, enabling them to guarantee their products for the recommended application. To ensure quality is not compromised, only virgin materials are used during manufacturing with polypropylene and styrene-acrylonitrile (SAN) vessels being FDA compliant.
Features
TECHNICAL CHARACTERISTICS
• Types of cartriges:
- Ø: 2 ¼” to 3 ⅛”
- proprietary Seal-Safe double o-ring sealing
- standard DOE

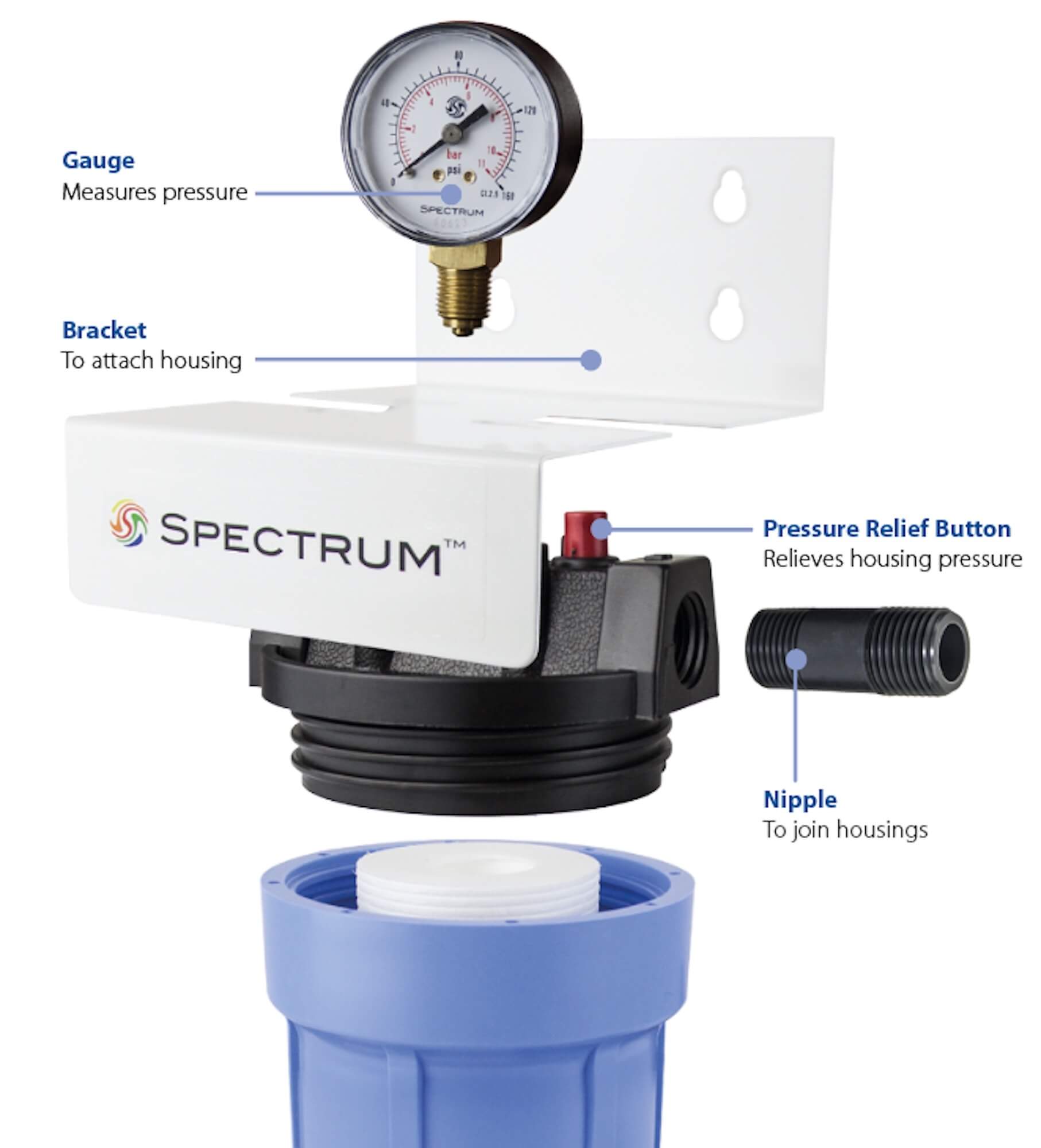

• Options: - pressure relief - differential pressure gauge - integral bracket or mouting boss cap
• Maximum temperature: 51.7°C
• Maximum pressure: 8.62 bar
• Housing: polypropylene (opaque) or styrene acrylonitrile (clear)
• Cap: reinforced polypropylene
• Button assembly: 300-series stainless steel, EPDM, and
polypropylene
• O-Ring: EPDM
General Conditions for Installation
- Material: Polypropylene
- Configuration: 1 Cartridge (L: 10" x D: 2.5")
- Port Size: 3/4"
- Seal: EPDM
- Temperature Rating (°C): 51.7
- Max Pressure (bar):8.6
- Flow Rate (lpm): 25
- End-Cap Compatibility: AA / DOE / CG
