Fleck Multimedia (sand) Water Filter
Price range: £570.00 through £5,785.00
Fleck are one of the most established global brands in water softening systems supplying a wide range of water treatment solutions. One of the three brands of Pentair control valves manufactured in EMEA region they cover a wide range of applications for softening or filtration purposes in residential, commercial or industrial environments, for hot or cold water. Over the past decades, Fleck has demonstrated a proven record of performance and reliability year after year.
Fleck filters can be used in domestic, commercial and industrial environments with a wide range of valves and options. Media includes Activated Carbon, Birm, Filox R, Multimedia, pH and Turbidex each being appropriate for different situations:
Media
- Type:
- Anthracite
- 08. – 1.25mm Filter sand
- 3 – 5mm Support Gravel
- Life Span: Dependent on frequency of backwashing and site conditions
Download our Multi-Media Filter Information Sheet.
POA by contacting Aquacover for the following products:-
- NBP Piston
- 2850 Valve
- 3150 Valve
- Auxiliary Microswitch
Please note All our FLECK vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.
General Conditions for Installation
- Connection Inlet & Outlet:
- 5800 / 2750 1" BSP
- 2850 1½" BSP
- 3150 2" BSP
- Electrical Rating: 230-24V / 50 Hz
- Power Rating: 55 watts
- Minimum Inlet Pressure: 200 kPa ( 2 Bar )
- Maximum Inlet Pressure: 700 kPa ( 7 Bar )
- Vacuum: Not permitted
- Average Pressure Loss: 100 kPa ( 1 Bar )
- Maximum Water Temperature: 43°c
Dimensions (mm)
| Model Reference | Valve H1 | Vessel H2 | Vessel B1 | Filter Ht | Inlet/Outlet | Drawing No |
|---|---|---|---|---|---|---|
| FLF58SXTC10MM | 220 | 1387 | 257 | 1607 | 1 “ | Fig. 1 |
| FLF58SXTC13MM | 220 | 1374 | 334 | 1594 | 1″ | Fig. 1 |
| FLF58SXTC14MM | 220 | 1660 | 369 | 1880 | 1″ | Fig. 1 |
| FLF58SXTC16MM | 220 | 1660 | 406 | 1880 | 1″ | Fig. 1 |
| FLF27SXTC18MM | 220 | 1750 | 469 | 1970 | 1 “ | Fig. 1 |
| FLF28SXTC21MM | 220 | 1640 | 552 | 1860 | 1½" | Fig. 1 |
| FLF31NXTC24MM | 200 | 2230 | 610 | 2430 | 2″ | Fig. 2 |
| FLF31NXTC30MM | 200 | 2300 | 770 | 2500 | 2″ | Fig. 2 |
| FLF31NXTC36MM | 200 | 2350 | 927 | 2550 | 2″ | Fig. 2 |
| FLF31NXTC42MM | 200 | 2435 | 1074 | 2635 | 2″ | Fig. 2 |
Regeneration
Start: Programmable regeneration time + day interval
Manual: Manual operation as required
Specifications
| Vessel diameter | 10" | 13" | 14" | 16" | 18" |
|---|---|---|---|---|---|
| Service flow rate m³/hr | 0.6 | 1.1 | 1.2 | 1.5 | 1.9 |
| Backwash flow rate m³/hr | 1.2 | 2.0 | 2.4 | 3.2 | 4.1 |
| Vessel diameter | 21" | 24" | 30" | 36" | 42" |
| Service flow rate m³/hr | 2.6 | 3.5 | 5.4 | 7.8 | 10.7 |
| Backwash flow rate m³/hr | 5.2 | 7.3 | 11.4 | 16.4 | 22.3 |
Related products
-

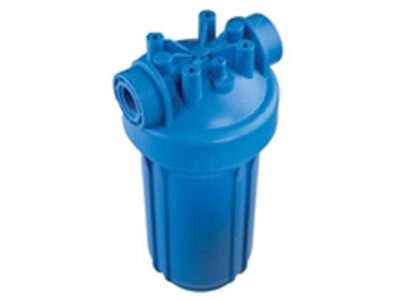

Spectrum Plastic Filter Housings – Aqualyse Housings 10″ Diameter Black – 1/4″ & 3/8″ Ports
