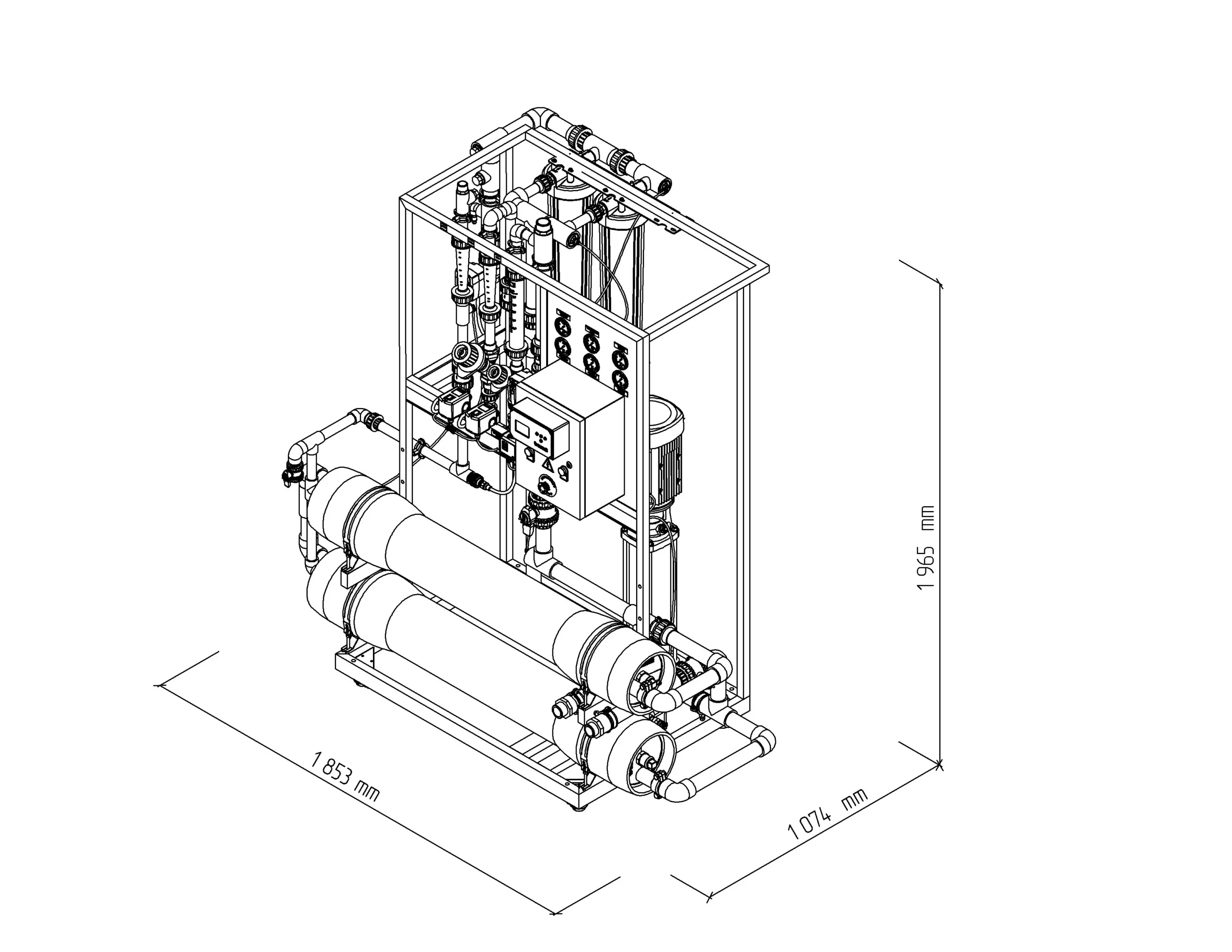

Ecosoft INOX IoT MO2 8″ Reverse Osmosis System
Price range: £12,180.00 through £14,690.00
The Ecosoft MO2 INOX is an industrial-grade RO system with 20000 liters per day output. It features full IoT monitoring, OC5000 automation, and stainless construction for long-term reliability.
Applications:- Process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalination, food and beverage, utility water treatment.
Features
- Capacity: 20000 liters per day
- OC5000 controller with LCD interface
- IoT monitoring via Econnect module
- Stainless steel frame and membrane rack, frame is made of AISI 304 stainless steel
- High pressure pipeline is made of AISI 316 stainless steel
- Grundfos pump included for stable flow
- Predesigned options for tailor-made solutions
General Conditions for Installation
Feed water requirements
- TDS — 4500 mg/L
- hardness — 150 mg/L CaCO₃
- iron — 0.1 mg/L
- manganese — 0.05 mg/L
- hydrogen sulfide — none
- silicate — 20 mg/L
- residual chlorine — 0.1 mg/L
- SDI — 5
- chemical oxygen demand - 4 mg/L O₂
Equipment
- Grundfos® CR 5-20 high pressure pump — 1 pcs
- 8040 membrane housing — 2 pcs
- BB20 sediment prefilter — 2 pcs
- Motorized valves — 2 pcs(feed water in, flush out)
- Balancing valves — 2 pcs(concentrate reject, concentrate recycle)
- Electrical panel with Ecosoft controller OC6000 — 1 set
- Set of instruments — 1 set
- AISI 316 Stainless steel high pressure line — 1 set
- AISI 304 Stainless steel frame — 1 set
- Frame mounted casters — 1 set
Options
- Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
- Dosing pump for antiscalant or other RO chemicals
- Permeate inlet for permeate membrane rinse
- Raw water mixing line
Parameter/Specification
- Permeate capacity 2–2,5 m³/h
- Recovery 75 %
- Maximum TDS 4500 mg/L
- Influent flow demand (service) 2,7–4 m³/h
- Operating pressure 8..12 bar
- Power consumption 3 kW
| Model | Flow Capacity m3/h (GPH) | Membranes | Pump |
|---|---|---|---|
| MO-2 | 2-3 (529–793) | 2/80 х 40 | Vertical |
| MO-3 | 3-4 (793–1 057) | 3/80 х 40 | multi-stage, |
| MO-4 | 4-5 (1 057–1 321) | 4/80 х 40 | 400 |
| MO-6 | 6-7 (1 585–1 850) | 6/80 х 40 | |
| MO-9 | 9-11 (2 378–2 906) | 9/80 х 40 | |
| MO-12 | 12-14 (3 170–3 699) | 12/80 x 40 |
Technical data
- Permeate capacity¹ — 2 m³/h
- Permeate recovery² — 75%
- Maximum TDS — 4500 mg/L
- Influent flow demand:
– 2,7…4 m³/h (service)
– 10 m³/h (rinse) - Operating pressure — 8…12 bar
- Maximum pressure — 15 bar
- Electrical requirements — 380…400 V, 50 Hz (3 ph)
- Electrical power — 3 kW
- Prefilter rating — 5 μm
¹ depends on feed water TDS, temperature, and permeate recovery
