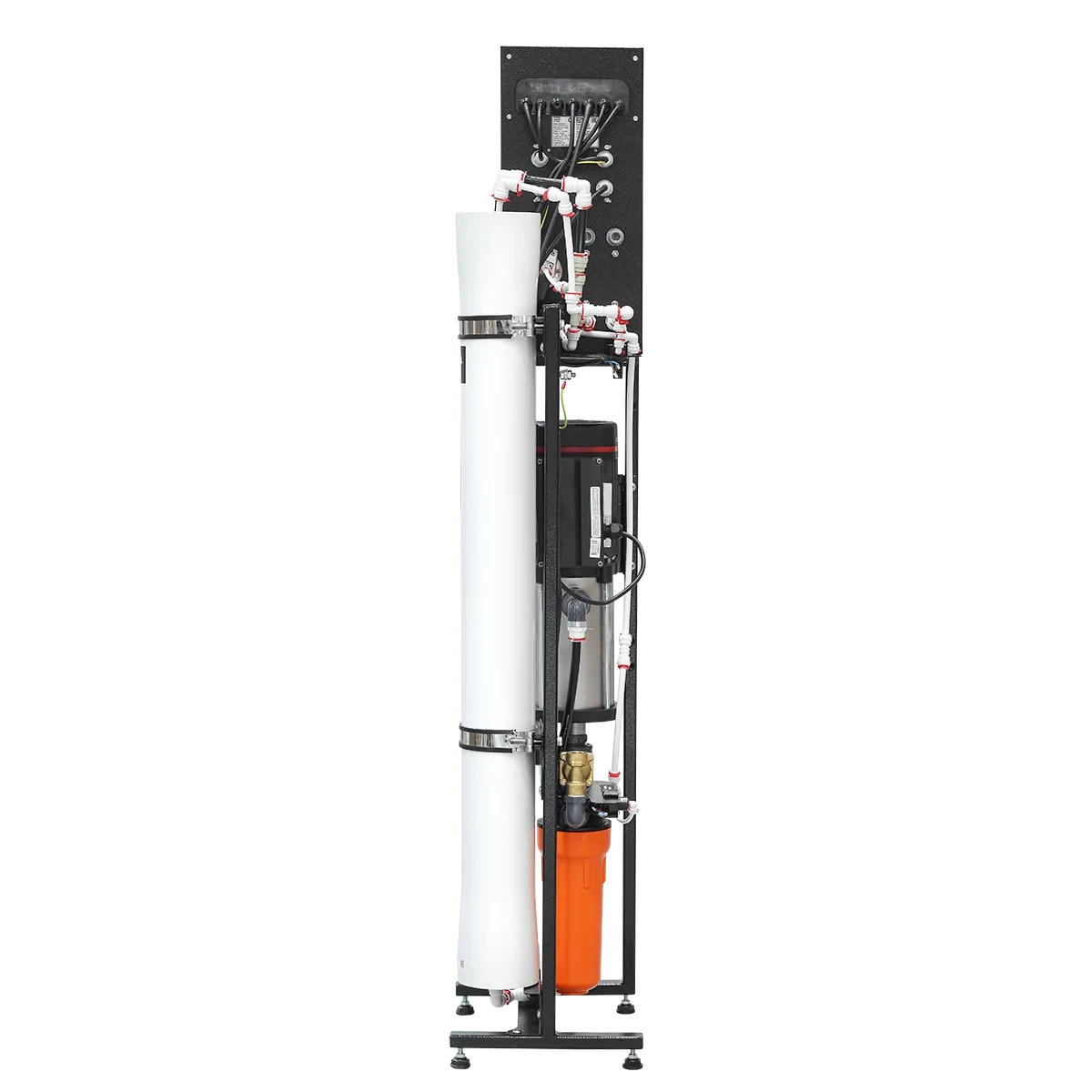

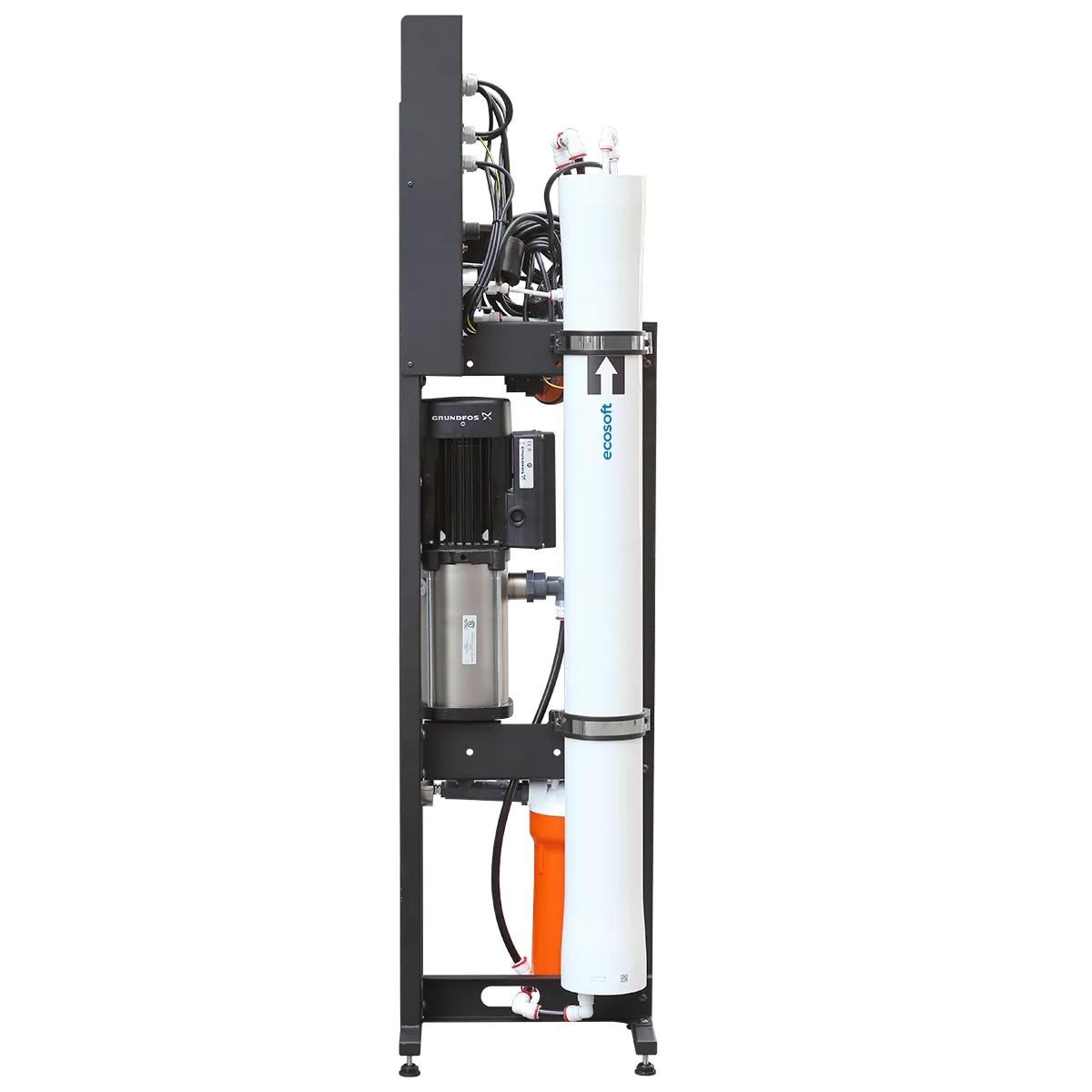

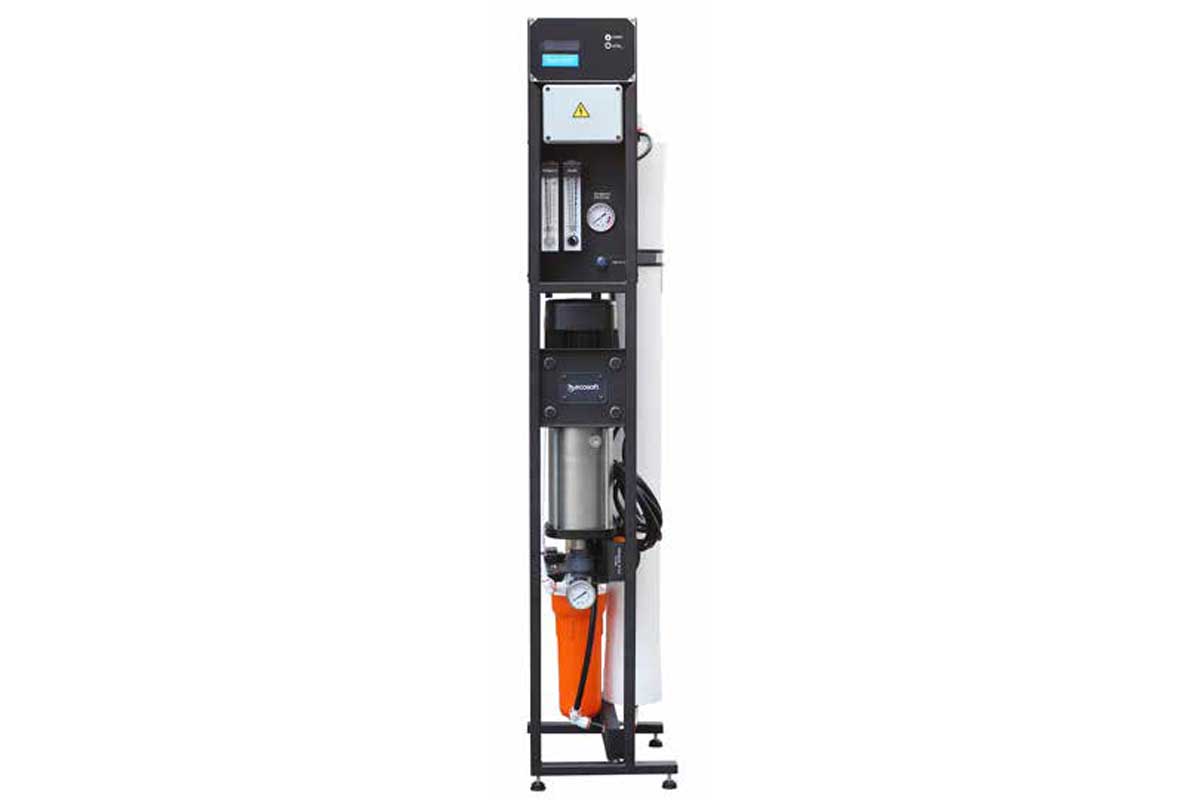

Ecosoft 4″ MO5000 Reverse Osmosis System
Price range: £2,470.00 through £2,880.00
The Ecosoft MO5000TP5 is an ultra-compact commercial reverse osmosis system that delivers up to 6.000 liters of purified water per day. Equipped with the OC5000 controller, it ensures stable performance and is perfect for compact utility rooms, laboratories, or small-scale food services.

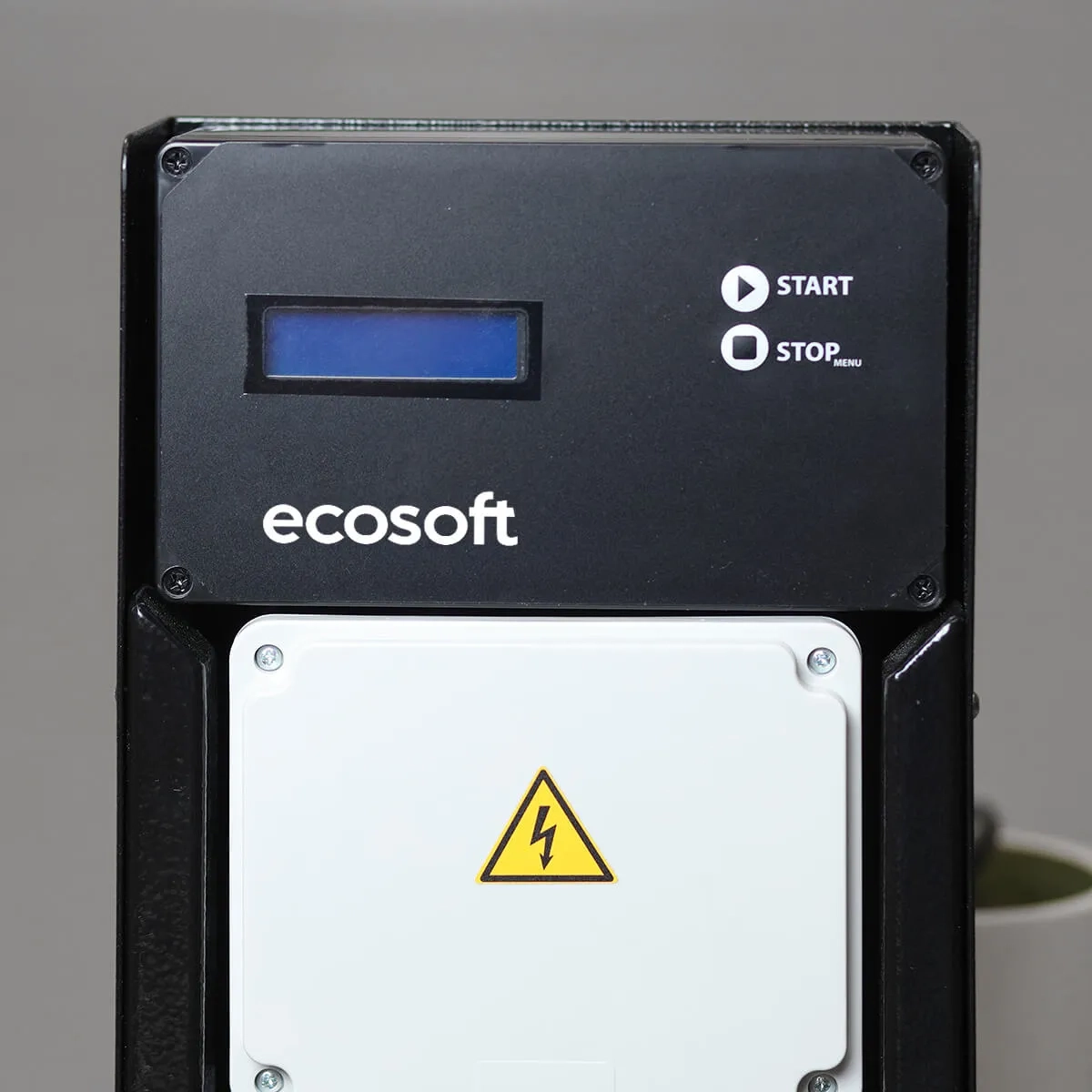

OC5000 controller
The OC5000 controller is designed for automatic or manual control of reverse osmosis unit and provides:
- automatic switching on and off of the equipment upon signal;
- emergency shutdown of the equipment by signals from dry-running sensors, overpressure in the module;
- shutdown of equipment on the external STOP signal.
Features
- Capacity: 6000 liters per day
- OC5000 controller with LCD interface
- Stainless steel frame and membrane rack
- Compact design for tight installations

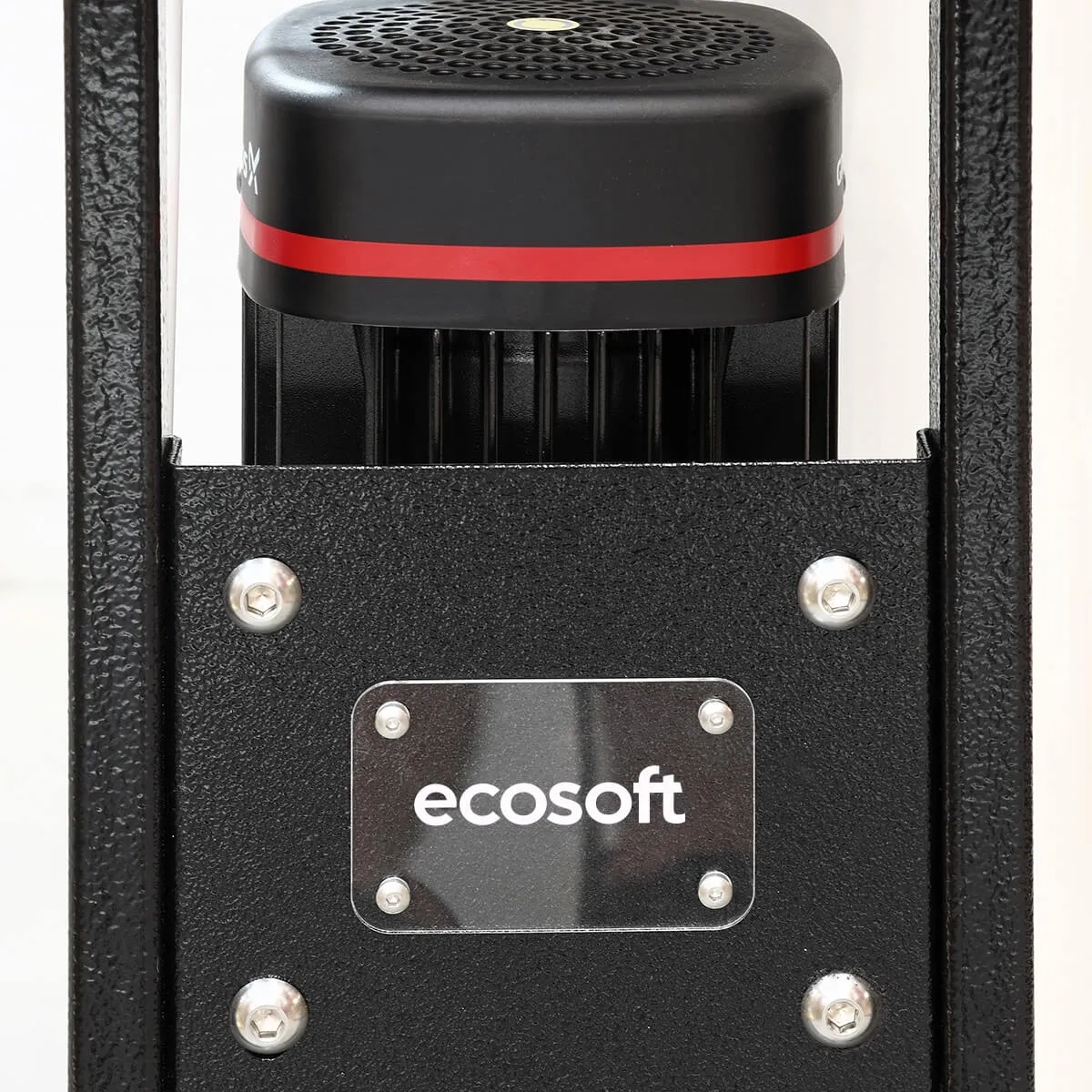

- Grundfos pump included for stable flow
General Conditions for Installation
Feed water requirements
- Influent water temperature: +5...+40 °С
- Residual chlorine, max: 0.1 mg/L
- Hardness:up to 3 meq/L (150 mg/L CaCO₃)
- Iron:up to 0.1 mg/L
- Manganese: up to 0.05 mg/L
- Silicate: up to 20 mg/L
- Chemical oxygen demand, max: 4.0 mg О₂/L
- Hydrogen sulfide: none
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.
Connections:
- influent water: ½"
- permeate: ½"
- concentrate: ½"
Equipment*

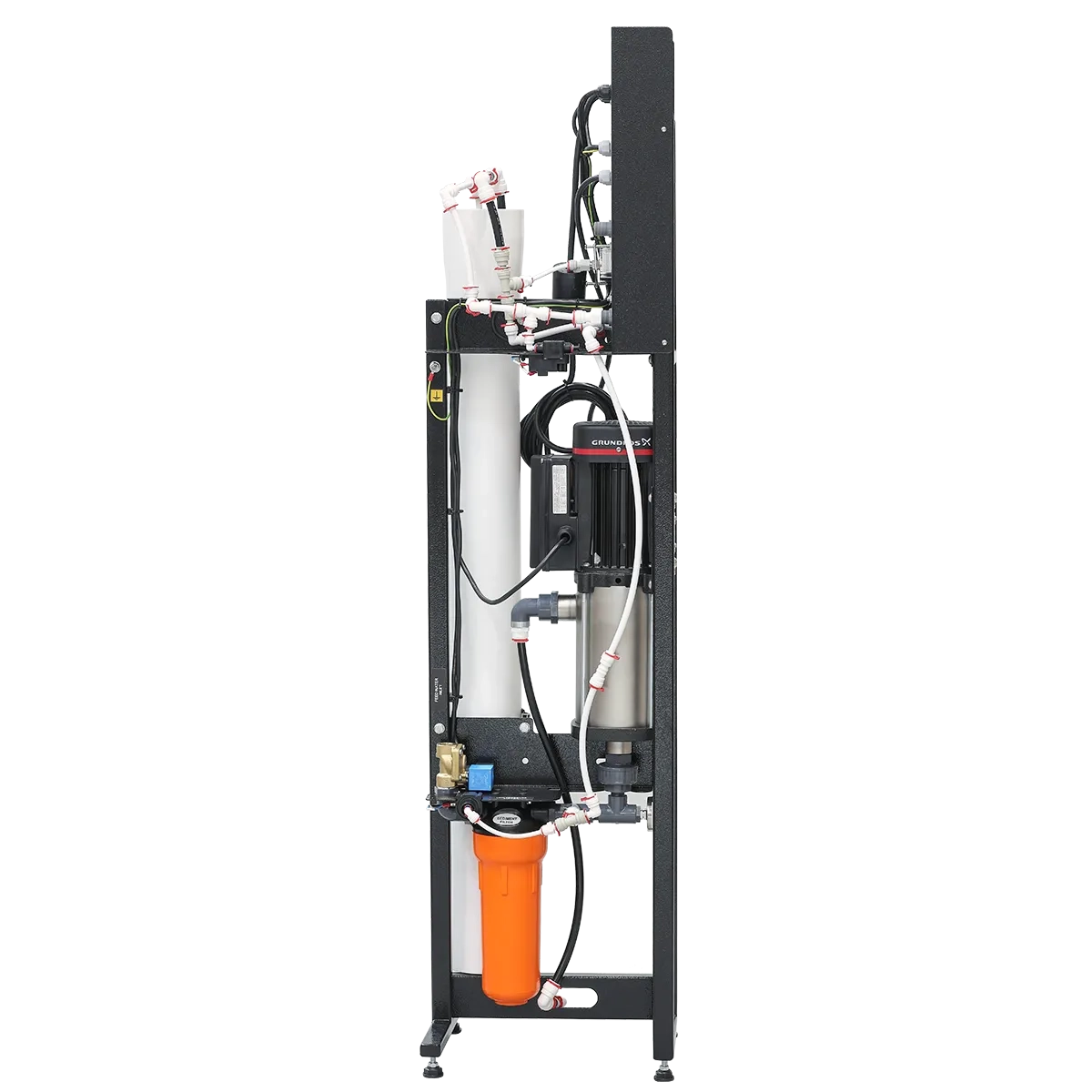

- Grundfos® CM 1-10 pump
- 300 psi membrane vessel

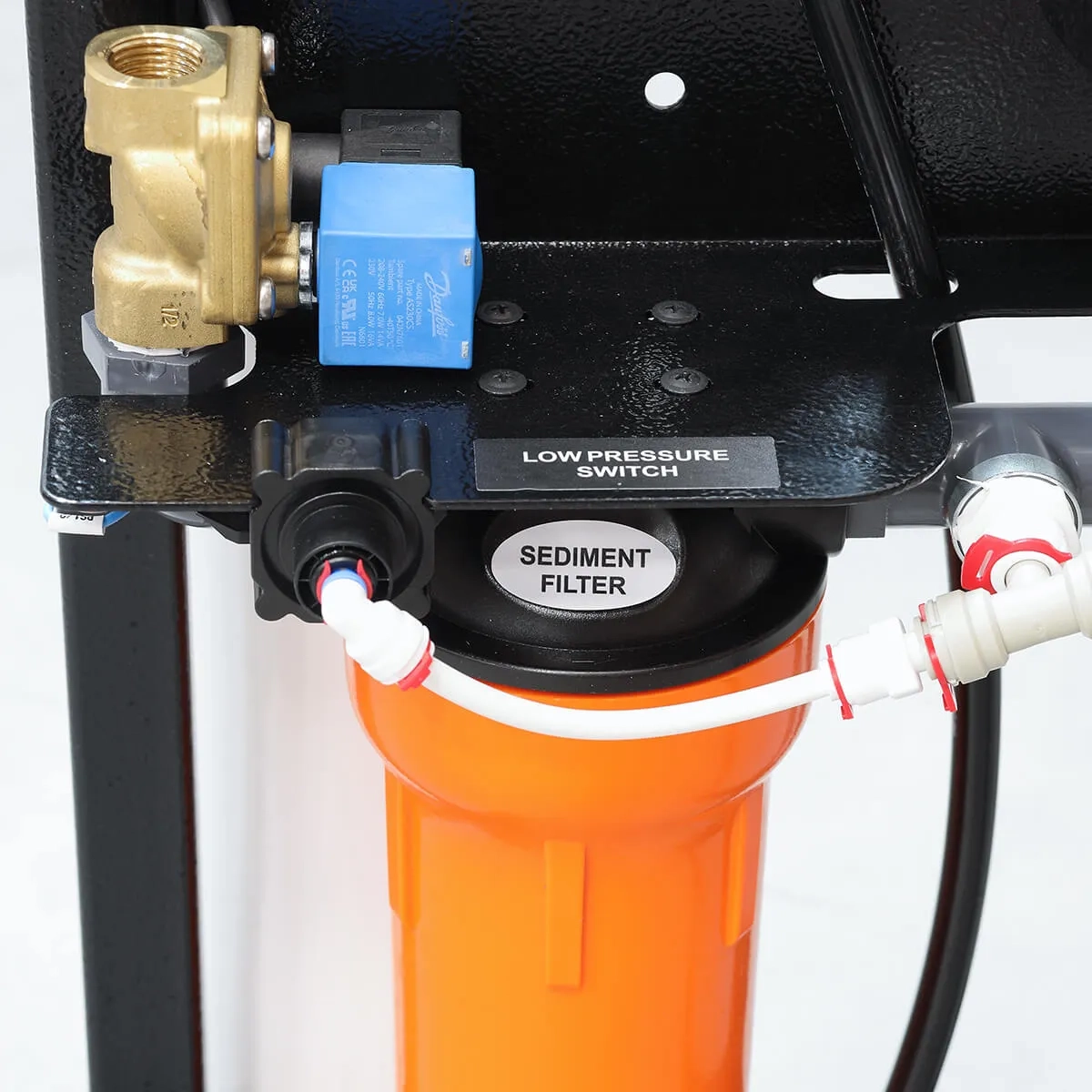

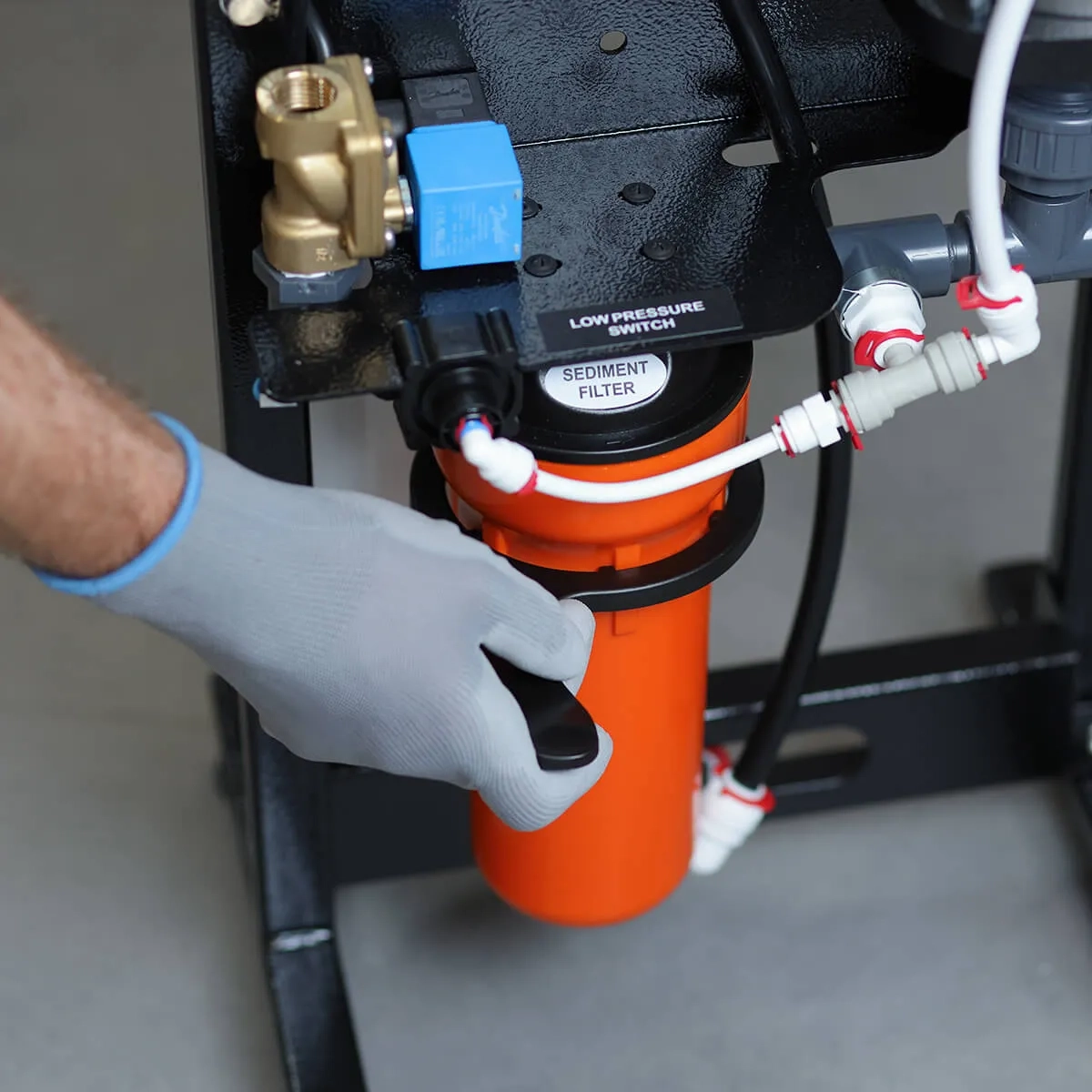

- 2.5 × 10″ sediment prefilter
- Electrical panel with Ecosoft controller

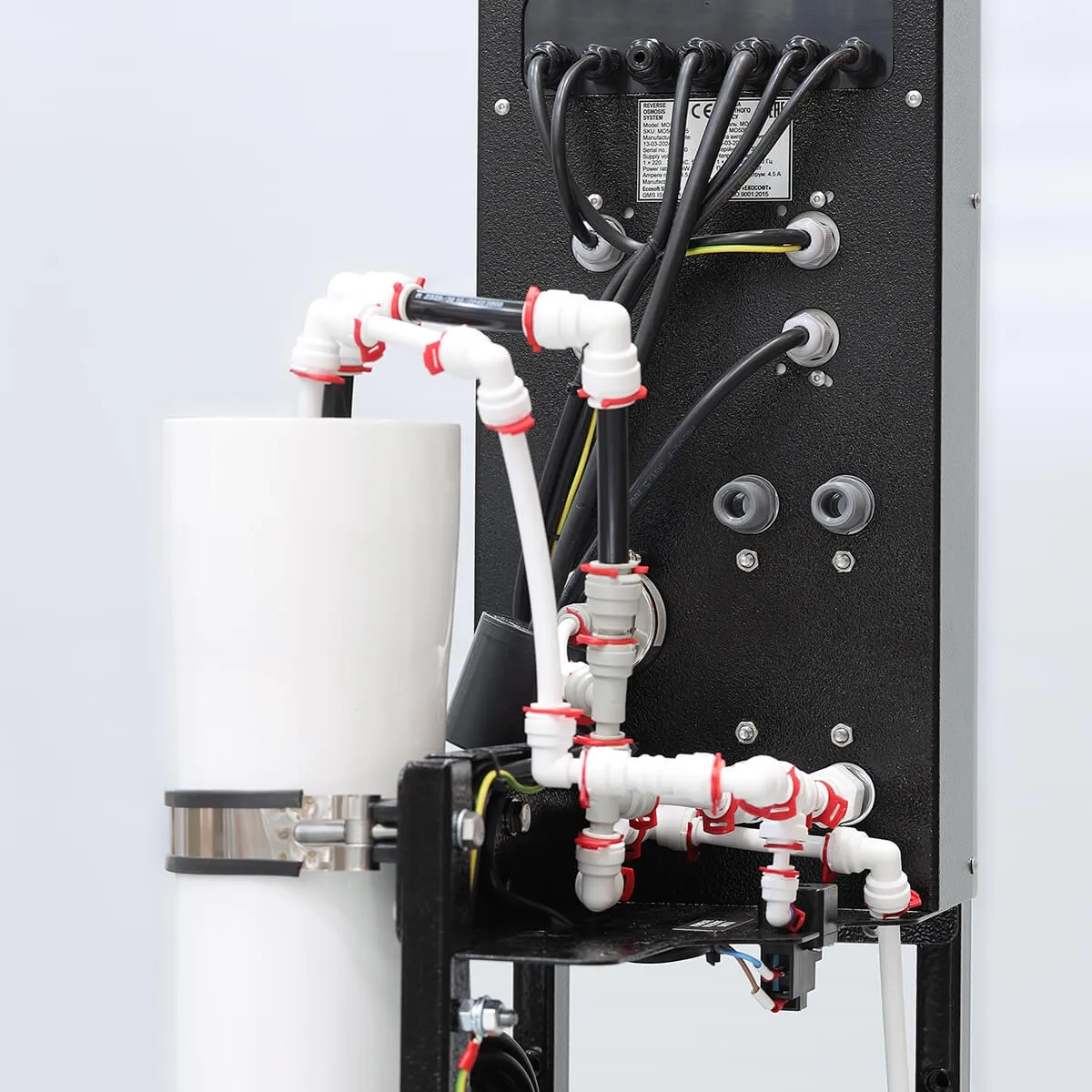

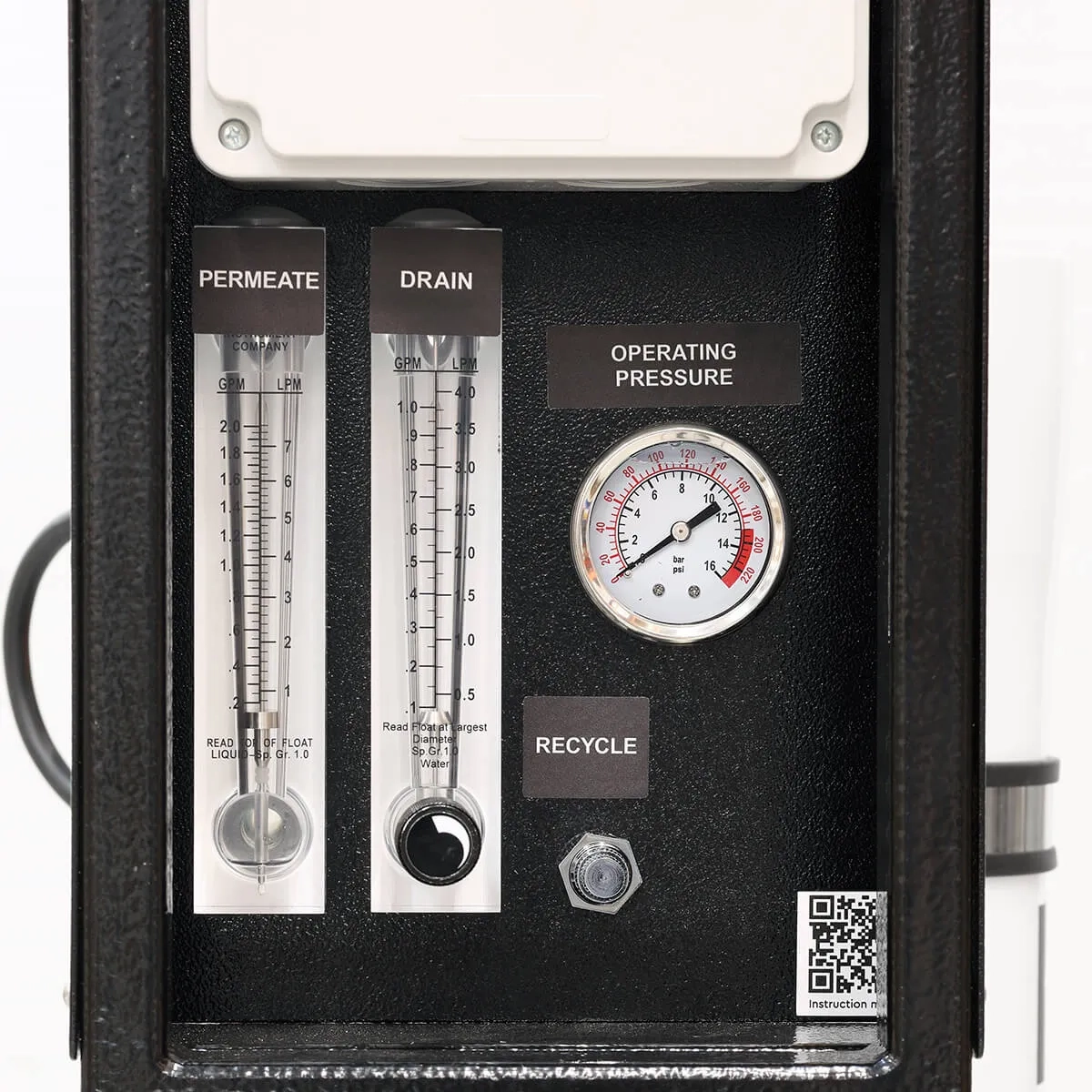

- Piping, instrumentation
- Steel frame
- Wooden crate
* Сonductivity sensor is not included to the system's components.
Parameter/Specification
- Flow capacity 250 L/h
- Inlet water pressure 2..4 bar
- TDS 3000 mg/L
- Influent flow demand (service) 320–400 L/h
- Operating pressure 8..12 bar
- Power consumption 0.7 kW
Specifications
- Permeate capacity**: 250 L/h
- Permeate recovery***: 75%
- Maximum TDS: 3000 mg/L
- Influent flow demand: 320…400 L/h (service)
- Operation pressure: 8…12 bar
- Maximum pressure: 14 bar
- Electrical requirements: 230 V, 50 Hz (1 ph)
- Electrical power: 0.7 kW
- Prefilter rating: 5 μm
** depends on feed water TDS, temperature, and permeate recovery
*** for low scaling/fouling water
Application:
• Private houses
• Restaurants
• Laboratories
• Greenhouses
• Steam generators
• Car washes
• Breweries
Online Device Monitoring Now Available
• Technical status
• Remote monitoring
• Remote trouble-shooting
• Alarm notification
• Service notification
• Volume & quality recoding
• Bakeries
• Pig farms
• Stud farms
• Beverage production plants
• Publishing houses
• Window manufacturing
