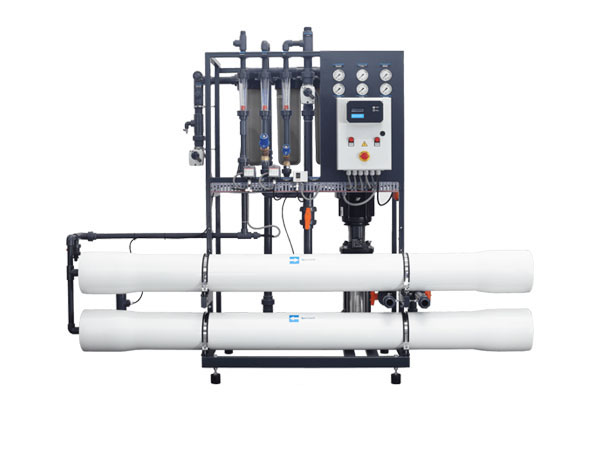

Ecosoft INOX IoT MO4 8″ Reverse Osmosis System
Price range: £16,700.00 through £21,710.00
Ecosoft MO4 INOX is built for 40000 L/day performance with automated control and IoT integration. It’s ideal for continuous use in industrial and commercial filtration setups.
APPLICATIONS:- Process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalination, food and beverage, utility water treatment.
Features
- Capacity: 40000 liters per day
- OC5000 controller with LCD interface
- Online access to the RO machine
- IoT monitoring via Econnect module
- Stainless steel frame made of AISI 304 stainless steel
- High pressure pipeline is made of AISI 316 stainless steel
- Grundfos pump included for stable flow
General Conditions for Installation
Feed water requirements
- TDS: 4500 mg/L
- hardness: 150 mg/L CaCO₃
- iron: 0.1 mg/L
- manganese: 0.05 mg/L
- hydrogen sulfide: none
- silicate: 20 mg/L
- residual chlorine: 0.1 mg/L
- SDI: 5
- chemical oxygen demand: 4 mg/L O₂
Equipment
- Grundfos® CR 10-12 high pressure pump: 1 pcs
- 8040-2 membrane vessel: 2 pcs
- BB20 sediment prefilter: 3 pcs
- Motorized valves (feed water in, flush out): 2 pcs
- Balancing valves (concentrate reject, concentrate recycle): 2 pcs
- Electrical cabinet with Ecosoft controller OC6000: 1 set
- Set of instruments: 1 set
- AISI 316 Stainless steel high pressure line: 1 set
- AISI 304 Stainless steel frame: 1 set
- Frame mounted casters: 1 set
Options
- Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
- Dosing pump for antiscalant or other RO chemicals
- Permeate inlet for permeate membrane rinse
- Raw water mixing line
| Model | Flow Capacity m3/h (GPH) | Membranes | Pump |
|---|---|---|---|
| MO-2 | 2-3 (529–793) | 2/80 х 40 | Vertical |
| MO-3 | 3-4 (793–1 057) | 3/80 х 40 | multi-stage, |
| MO-4 | 4-5 (1 057–1 321) | 4/80 х 40 | 400 |
| MO-6 | 6-7 (1 585–1 850) | 6/80 х 40 | |
| MO-9 | 9-11 (2 378–2 906) | 9/80 х 40 | |
| MO-12 | 12-14 (3 170–3 699) | 12/80 x 40 |
Parameter/Specification
- Permeate capacity 4–5 m³/h
- Recovery 75 %
- Maximum TDS 4500 mg/L
- Influent flow demand (service) 5.5–8 m³/h
- Operating pressure 8..12 bar
- Power consumption 4 kW
Technical data
- Permeate capacity¹: 4 m³/h
- Permeate recovery²: 75%
- Maximum TDS: 4500 mg/L
- Influent flow demand:
– 5,5…8 m³/h (service)
– 10 m³/h (rinse) - Operating pressure: 8…12 bar
- Maximum pressure: 15 bar
- Electrical requirements: 380…400 V, 50 Hz (3 ph)
- Electrical power: 4 kW
- Prefilter rating: 5 μm
¹ depends on feed water TDS, temperature, and permeate recovery
² for low scaling/fouling water
