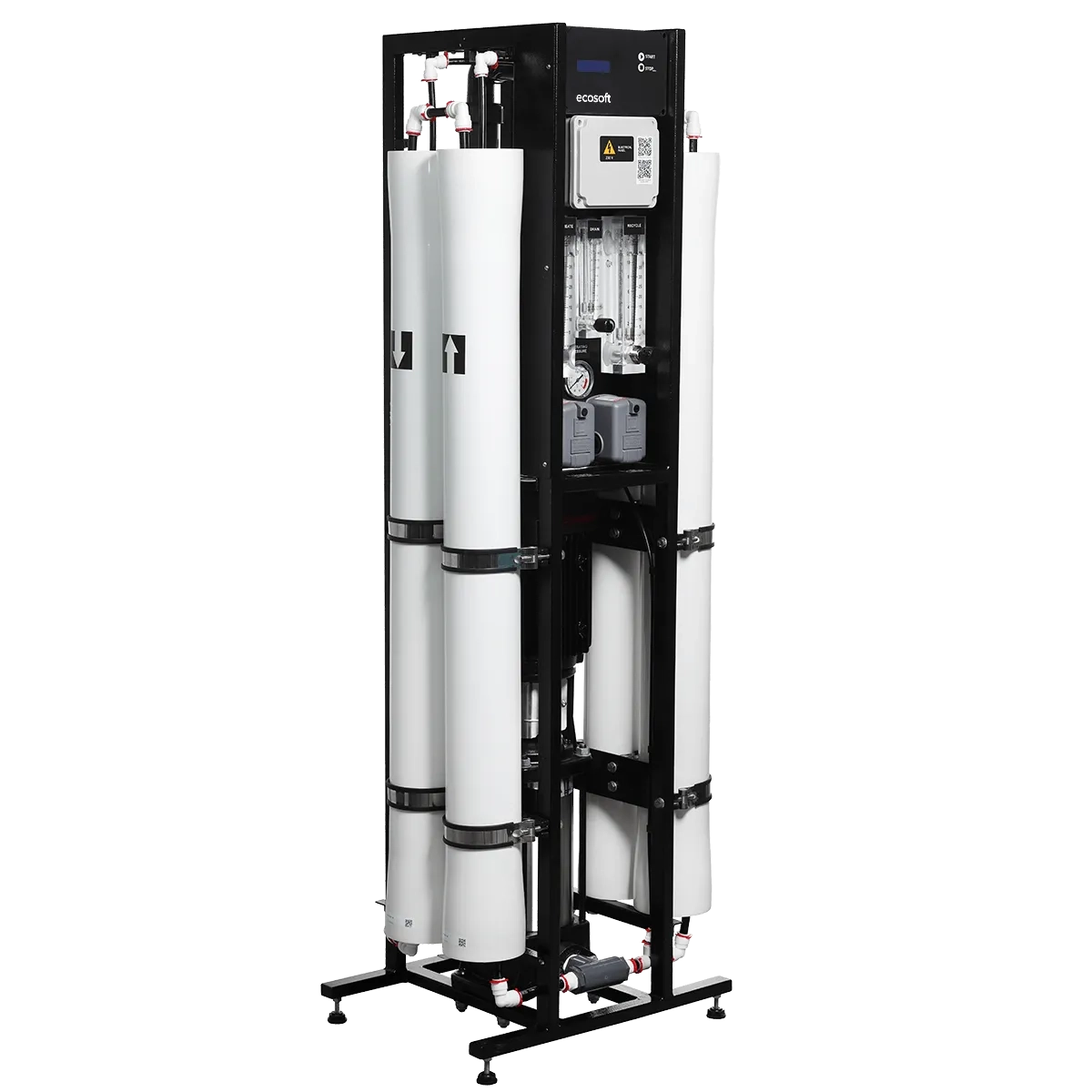

Ecosoft MO20000 Reverse Osmosis System 4″
Price range: £4,300.00 through £5,985.00
The Ecosoft MO20000TP5 is a powerful yet space-saving RO system with a daily capacity of 24.000 liters. Designed for demanding commercial settings, it features the OC5000 digital controller and a robust powder-coated frame with plastic pressure lines.
Applications
- Steam boilers
- Heating and cooling circuits
- Breweries and beverage production
- Livestock and poultry farms
- Glazing factories
- Laundry and car wash
- Greenhouses
Features
- Capacity: 20000 liters per day

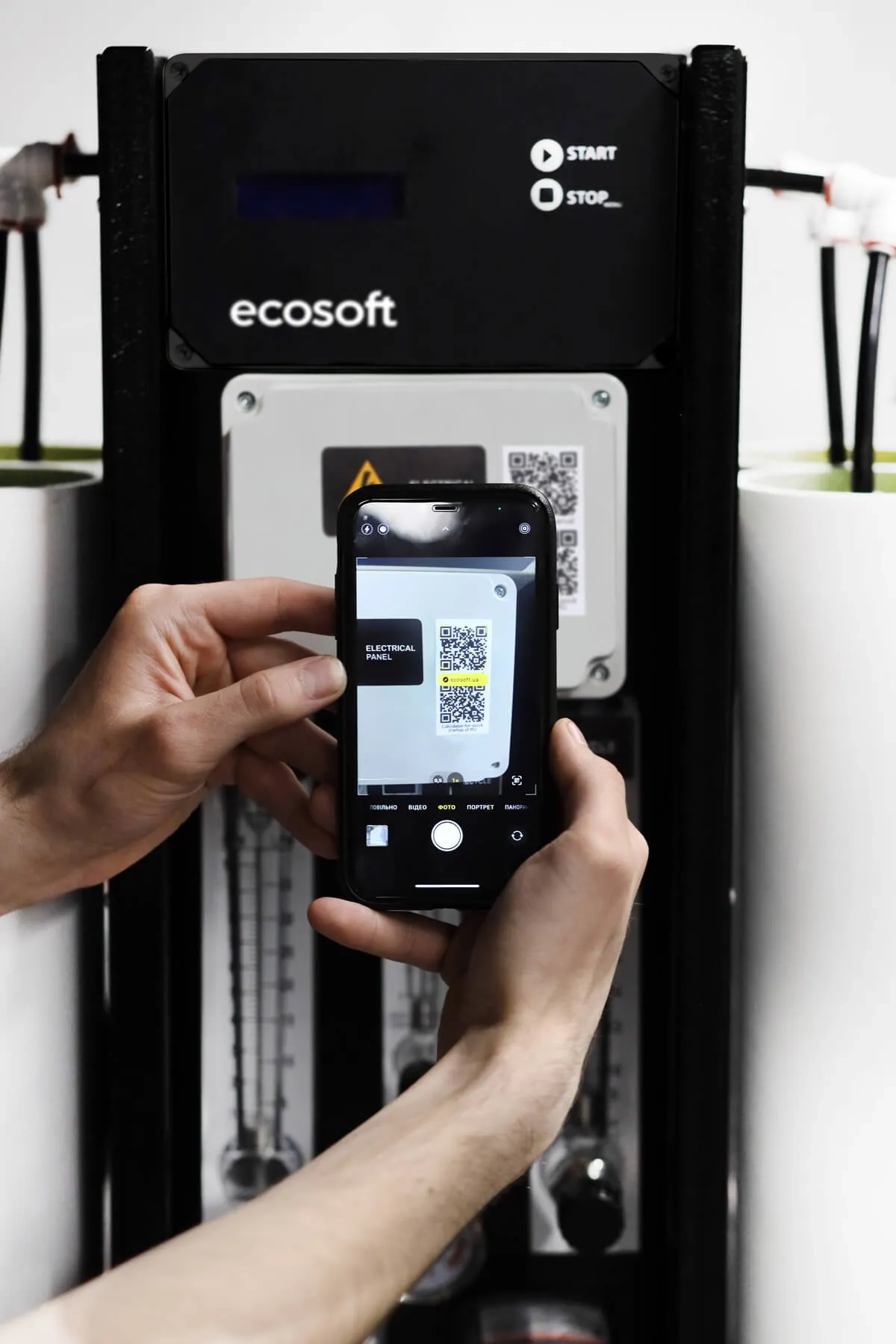

- OC5000 controller with LCD interface
- Stainless steel frame and membrane rack
- Compact design for system integration
- Grundfos pump included for stable flow
General Conditions for Installation
Feed water requirements
- Influent water temperature: +5...+40 °С
- Residual chlorine, max: 0.1 mg/L
- Hardness: up to 3 meq/L (150 mg/L CaCO₃)
- Iron: up to 0.1 mg/L
- Manganese: up to 0.05 mg/L
- Silicate: up to 20 mg/L
- Chemical oxygen demand, max: 4.0 mg О₂/L
- Hydrogen sulfide: none
The limitations may be exceeded if using antiscalant, oxygen scavenger, or other RO chemical pretreatment.
Equipment

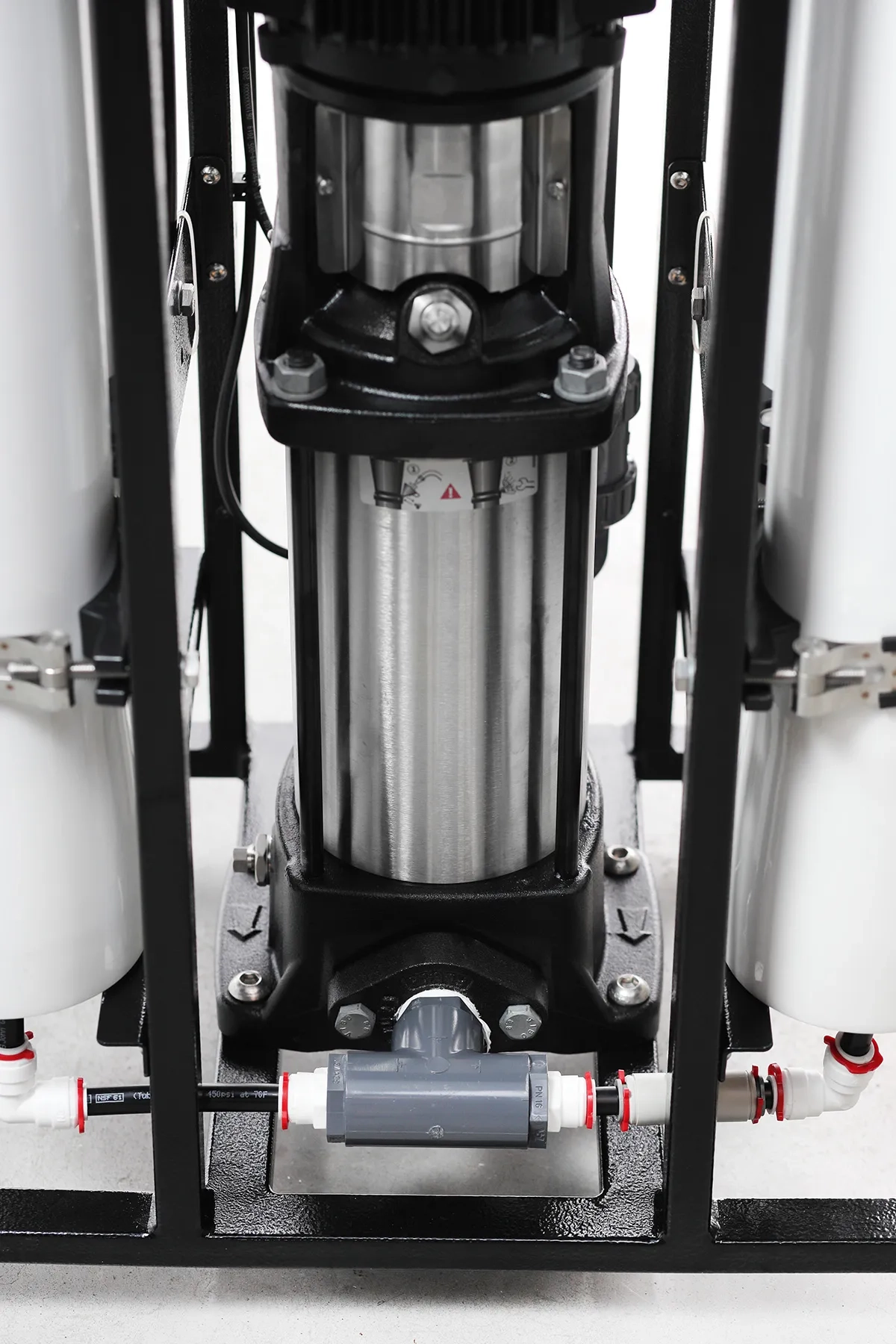

- Grundfos® CR 3-15 pump
- 300 psi membrane vessel

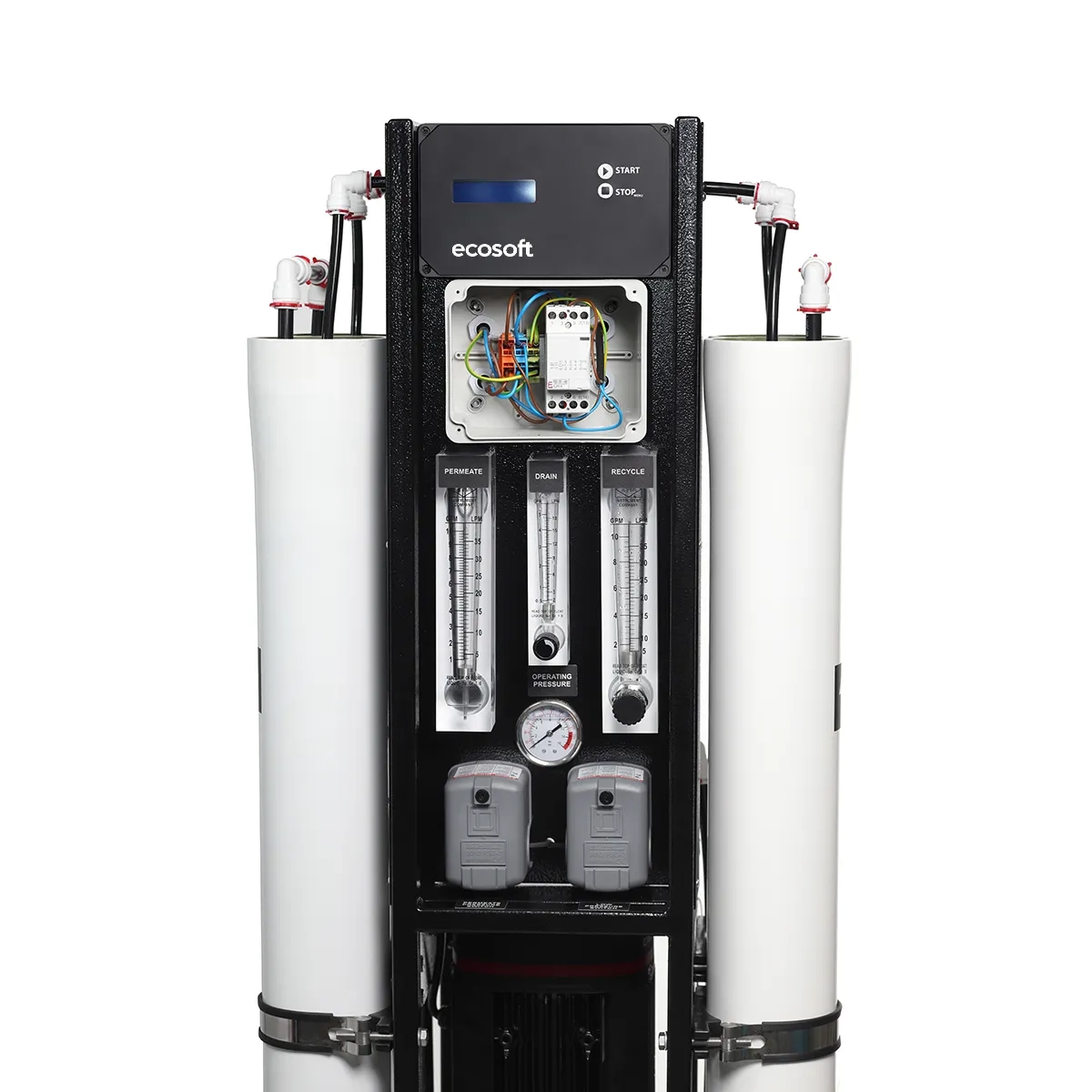

- Electrical panel with Ecosoft controller
- Piping, instrumentation
- Powder coat steel frame
- Wooden crate
Options
- Filmtec™ ХLE-4040 / LCLE-4040 or Ecosoft ELP-4040 membranes
Connections:
- influent water: 3/4"
- permeate: 1"
- concentrate: ½"
Parameter/Specification
- Flow capacity 1000 L/h
- Inlet water pressure 2..4 bar
- TDS 3000 mg/L
- Influent flow demand (service) 1300–1500 L/h
- Operating pressure 8..12 bar
- Power consumption 1.4 kW
Specifications
- Permeate capacity*: 1000-1200 L/h
- Permeate recovery**: 75%
- Maximum TDS: 3000 mg/L
- Influent flow demand: 1300…1500 L/h (service)
- Operation pressure: 8…12 bar
- Maximum pressure: 14 bar
- Electrical requirements: 230 V, 50 Hz (1 ph)
- Electrical power: 1.4 kW
- Prefilter rating: 5 μm
* depends on feed water TDS, temperature, and permeate recovery
** for low scaling/fouling water
