Atlas Water Quality Monitor Module
£190.00

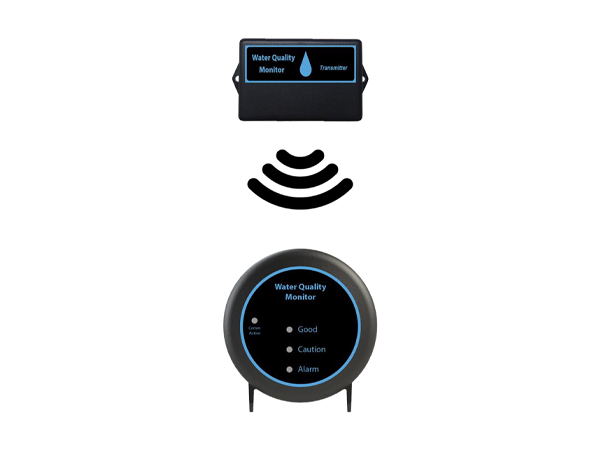

The Atlas Water Quality Monitor Module comes with a Transmitter and a Remote Display. The Transmitter connects to a standard output and high output controller and transmits the controller’s status wirelessly to the Remote Display. Every Transmitter and Remote Display is paired together and uses encryption to create a reliable and secure communication link between the two devices. Every Transmitter supports up to five Remote Displays. Additional Remote Displays can be purchased and installed separately. Refer to ‘Pairing an Additional Remote Display’ for additional Remote Display installation.
Features
- Allows for remote monitoring on all products
- Integral audible alarm and visual indicators for “GOOD”, “CAUTION”, and “ALARM” conditions
- Hard wire option only (wall wart) (battery option to follow)
- Supplied with both the receiver and transmitter which is connected to the IEP port of the controller as are other modules
- Flexible mounting configurations
- Can install up to 5 receivers per transmitter
General Conditions for Installation
Step 1) Power off the UV system controller.
Step 2) Plug the male plug of the Transmitter into the IEP (Infinite Expandability Port) on the controller, or into any other module that contains an IEP (sensor, 4-20 mA module, solenoid module, etc.) and then restart the system Note 1.
Step 3) To Receive the UV system controller’s status on the Remote Display, plug the AC/DC wall adapter into the Power Port on the Remote Display (5V Max) and slide the switch to the ON position.
