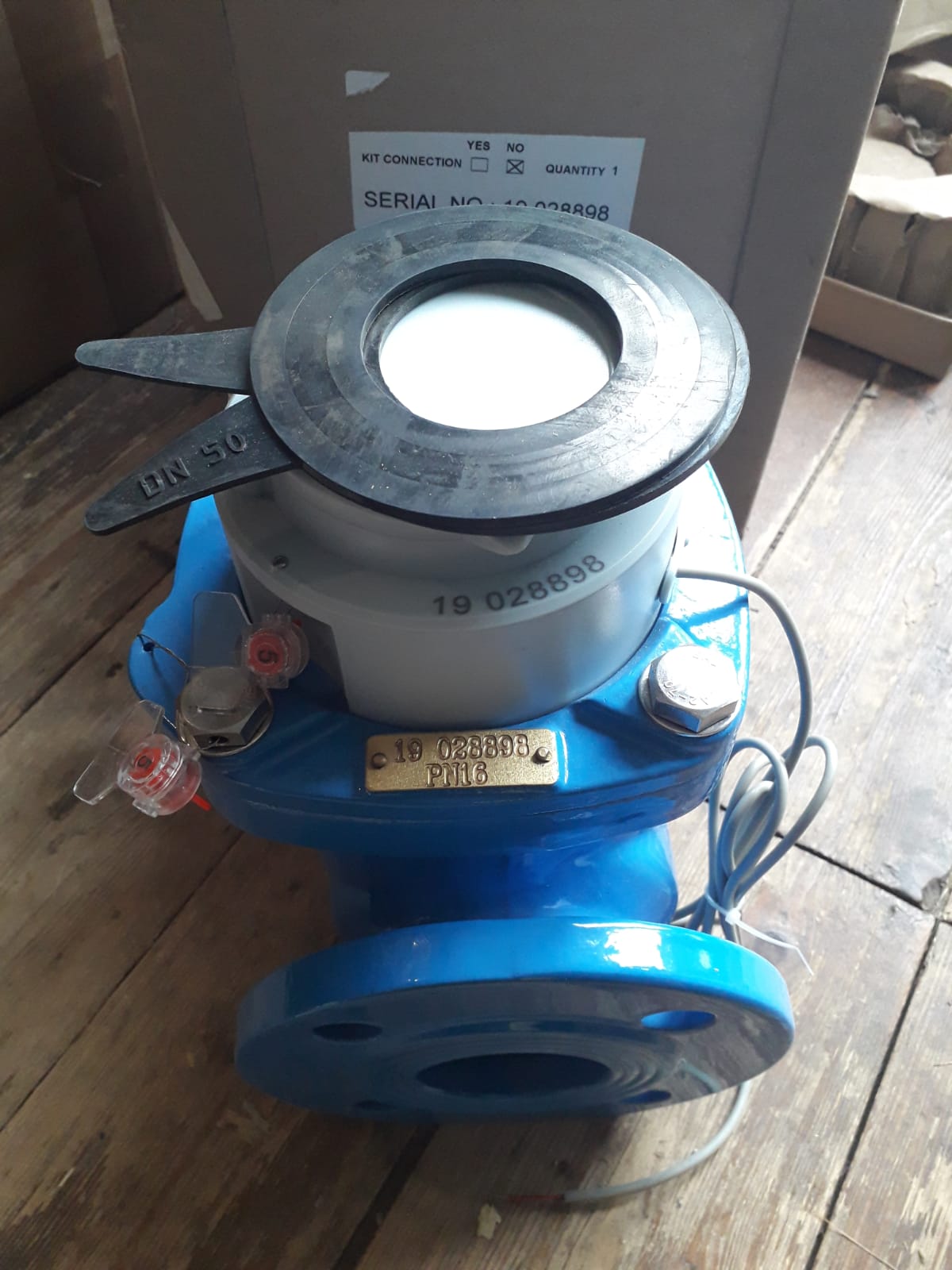

Water Meter – WP-SDC Woltmann Water Meter with super dry dial
£150.00
The WP-SDC is a Woltmann mechanical water meter with dry type dial counter suitable for a variety of water distribution and industrial applications. K=100.
Features
• Woltmann helix meter type (Bulk Meter)
• Replaceable ‘drop-in’ mechanism
• Approved: EN14154:2005+A1,OIML R-49: 2006(E)
• Dry dial (frost resistant)
• Meter body material is epoxy coated cast iron
• Drinking water approved: WRAS
• Can be installed vertically or horizontally
• DIN flanged connections (ANSI option)
• Maximum pressure of 16 bar
• Maximum temperature of 50°C (T30 or T50)
• Pulse Output option: Vmax=24AC/DC, Imax=0.01A
Related products
-
Water Analysis & Testing
Call for Price -
Water Meter – MJ-SDC Multi Jet water Meter with Dry Dial
Price range: £72.00 through £1,982.00 -

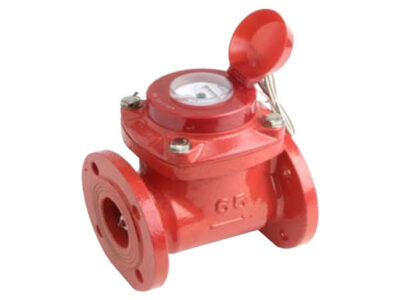

Water Meter – WP-SDC Woltmann Water Meter with Super Dry Dial – Hot Water
