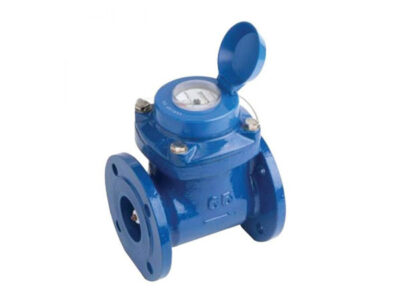

Water Meter – WP-SDC Woltmann Water Meter with Super Dry Dial – Hot Water
Price range: £351.00 through £383.00
Hot Water 90°C – threaded with couplings
A range of Woltmann type, helix driven, water meters for hot and high temperature water, with ductile iron bodies (epoxy powder coated) and flanged or threaded connections for pipe sizes 50 to 500 mm. These Woltmann water meters have WRAS approval and pulse outputs are fitted.
Features
• Woltmann helix meter type (Bulk Meter)
• Replaceable ‘drop-in’ mechanism
• Approved: EN14154:2005+A1,OIML R-49: 2006(E)
• Dry dial (frost resistant)
• Meter body material is epoxy coated cast iron
• Drinking water approved: WRAS
• Can be installed vertically or horizontally
• DIN flanged connections (ANSI option)
• Maximum pressure of 16 bar
• Maximum temperature of 50°C (T30 or T50)
• Pulse Output option: Vmax=24AC/DC, Imax=0.01A
• Tamper evident wire lock & seal
The WP-SDC is a Woltmann mechanical water meter with a dry type dial counter suitable for a variety of water distribution and industrial applications, available in sizes DN50 (2″) to DN500 (20″)
| DN Size | Max Flow m³ | Normal Flow m³/H | Min Flow L/H | Pulse Options | |
| 2" (DN50) | 60 | 40 | 0.5 | 10-100-1000 | |
| 2¼ (DN65) | 78 | 63 | 0.78 | 10-100-1000 | |
| 3" (DN801) | 78 | 63 | 0.78 | 10-100-1000 | |
| 4" (DN100) | 125 | 100 | 1.25 | 10-100-1000 | |
| 5" (DN125) | 200 | 160 | 2 | 10-100-1000 | |
| 6" (DN150) | 312 | 250 | 3.1 | 100-1000-10000 | |
| 8" (DN200) | 500 | 400 | 5 | 1000-10000 | |
| 12" (DN300) | 1250 | 1000 | 12.5 | 1000-10000 |
| DN Size | Body Length mm | PCD mm | Height mm | Width mm |
|---|---|---|---|---|
| 2" (DN50) | 200 | 125 | 252 | 4xM16 |
| 2½ (DN65) | 200 | 145 | 262 | 4xM16 |
| 3" (DN80) | 225 | 160 | 272 | 8xM16 |
| 4" (DN100) | 250 | 180 | 282 | 8xM16 |
| 5" (DN125) | 250 | 210 | 297 | 8xM16 |
| 6" (DN150) | 300 | 240 | 341 | 8xM16 |
| 8" (DN200) | 350 | 295 | 371 | 12xM16 |
| 12" (DN300) | 500 | 410 | 516 | 12xM16 |
Related products
-
Water Analysis & Testing
Call for Price -

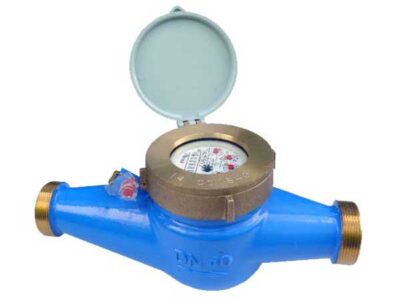

Water Meter – MJ-SDC Multi Jet water Meter with Dry Dial
Price range: £72.00 through £1,982.00 -
-

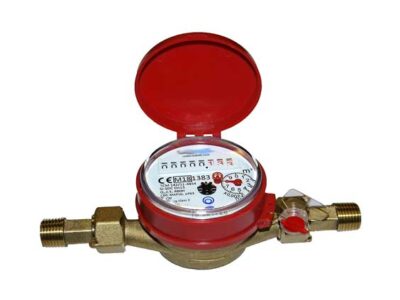

Water Meter – MJ-SDC Multi Jet water Meter with Dry Dial
