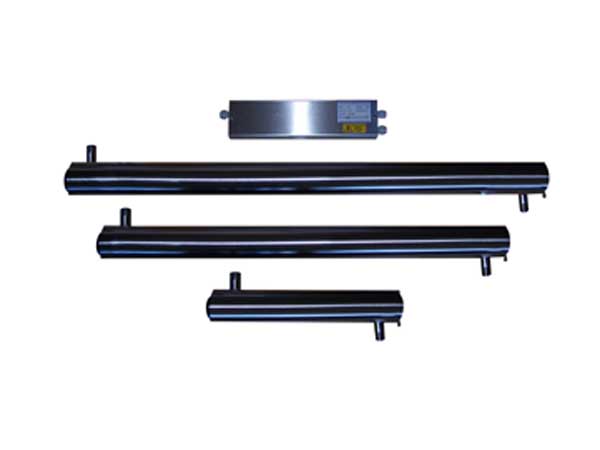

Ultraviolet System – Pallas SS UV System
Price range: £600.00 through £1,939.00
The Pallas SS UV range of high quality ultra violet systems all utilise low pressure mercury vapour discharge lamps to produce ultra violet light at the 254 mm wavelength (UVC) which is lethal to micro organisms. The stainless steel chamber incorporates a high purity quartz sleeve around the lamp. As water passes through the chamber UVC light penetrates and destroys the cell structure of micro organisms in the water.
Installation of the Pallas UV system is simple and once fitted the system requires no attention and only periodic maintenance. Due to effective design and use of high quality components, running costs are extremely low and the lamps only require annual replacement. The chamber is manufactured from hygienic 316L grade stainless steel, ensuring strength, reliability and efficient hydraulic operation. The stainless steel housing come with a separate type A control box as standard containing the lamp drive circuits certified to IP40.
UV dose is 30 mj/cm2, flow rates rated for 985 transmission.
- Wells, springs and other untreated supplies
- Incorporated into water filtration and treatment plants
- Fish farms for the control of micro organisms
- Algae control in ponds and general aquatic use
| Product | Max Flow Rate at 30mj | Connection | Length mm |
| SS-i15 | 9.5 l/min | ¾" | 455 |
| SS-i30 | 23 l/min | ¾" | 915 |
| SS-i55 | 37 l/min | ¾" | 1220 |
| SS-i75 | 60 l/min | 1" | 1220 |
| SS-i575 | 152 l/min | 1½ | 1220 |
