Ultraviolet System – Sita AM Range
Price range: £4,050.00 through £8,218.00

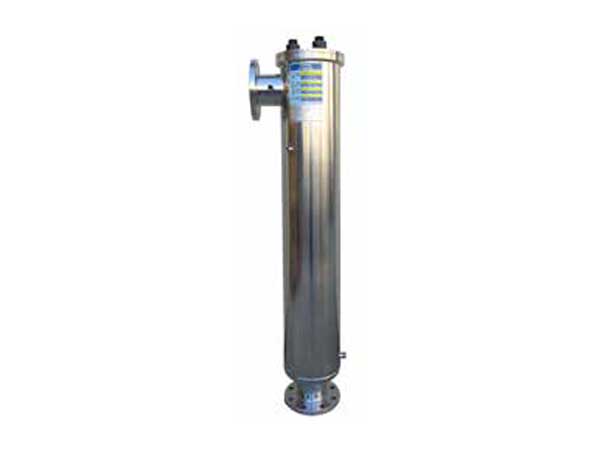

The AM Ultraviolet series features an extremely powerful 200W amalgam lamp. The series is unique by the fact that you can handle a high flow with a small number of lamps. Its unique L shape one can install the AM both horizontally and vertically. These are ideal for private water, industrial, beverage and food industries.
Features
- Stainless steel 304 or 316
- L shape configuration
- Baffle plates to increase dose
- Plus models with UV/temperature sensor
- IP 65 lamp connection
- 200W High power amalgam lamp
Options available
- Manual, automatic of chemical cleaning
- 4/20 mA remote on/off
- Datalog software, GSM alarm box
The SITA AM series has been sized using powerful amalgam lamps. Each plant is therefore able to treat a good flow rate using few lamps and thus reducing maintenance costs and times.
Excellent water circulation is guaranteed by the special mixing plates and is verified by our fluid dynamics program. Disinfection is therefore guaranteed even with low UV transmittance.
Its “L” configuration is suitable for exploiting the entire length of the lamp and for installing the system both vertically and horizontally.

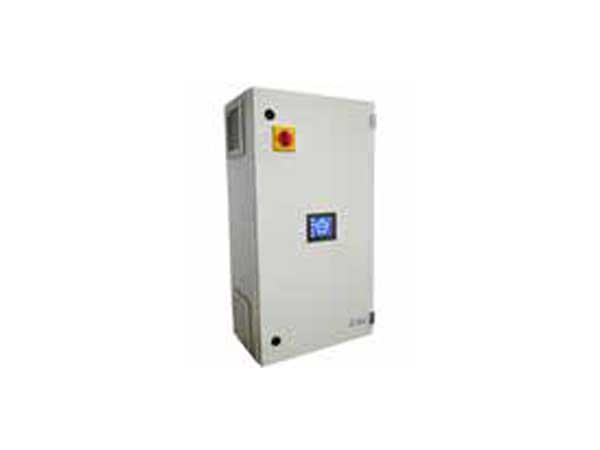

The new generation electrical panel equipped with a microprocessor is able to satisfy any need.
The automatic quartz cleaning system is available on the whole series
CAPACITY: From 20 to 160 m3 / h
LAMPS: low pressure amalgam lamps. High efficacy, long life (12,000 hours)
MANIFOLD MATERIAL: Int / ext polished stainless steel – AISI 304 or AISI 316L
UV-C DOSE: > 400 J / m2
MAX PRESSURE: 10 bar
WATER QUALITY: UV Transmittance Range 60% – 98% – 1 cm
CERTIFICATIONS: CE, GOST, WRAS
- Food and Beverage
- Potable Water
- Pharmaceutical
- Horticultural
| Product | Watt | Max Flow Rate at 30 mj | Connection |
| UV AM 24 | 1 X 200 | 24 m3/h | 2" M |
| UV AM PLUS | 1 X 200 | 24 m3/h | 2" M |
| UV AM 50 | 2 X 200 | 50 m3/h | DN80 |
| UV AM 50 PLUS | 2 X 200 | 50 m3/h | DN80 |
| UV AM 60 | 2 X 200 | 60 m3/h | DN80 |
| UV AM 60 PLUS | 2 X 200 | 60 m3/h | DN80 |
| UV AM 60 SS 316L | 2 X 200 | 60 m3/h | DN80 |
| UV AM 60 PLUS SS 316L | 2 X 200 | 60 m3/h | DN80 |
| UV AM 96 PLUS TC SS 316L 3-200W | 3 X 200 | 96 m3/h | DN100 |
| UV AM 125 PLUS TC SS 316L 4-200W | 4 X 200 | 125 m3/h | DN150 |
| UV AM 160 PLUS TC SS 316L 4-200W | 4 X 200 | 160 m3/h | DN150 |
