Siata Duplex V250 Water Softener
Price range: £700.00 through £7,704.00
Please note All our SIATA vessels are structural fibre certified, with Purolite or Dow resin. Please be aware of inferior products elsewhere.
General Conditions for Installation
- Connection Inlet & Outlet 1½" Union
- Drain Connection * 1" BSPF
- Electrical Rating 230-12V / 50 Hz
- Power Rating 4.6 VA
- Minimum Inlet Pressure 200 kPa ( 2 Bar )
- Maximum Inlet Pressure 600 kPa ( 7 Bar )
- Vacuum Not permitted
- Average Pressure Loss ** 100 kPa ( 1 Bar )
- Maximum Water Temperature 43°c
* Open drain required
** It is recommended to install a 25μm prefilter prior to the inlet of the water softener

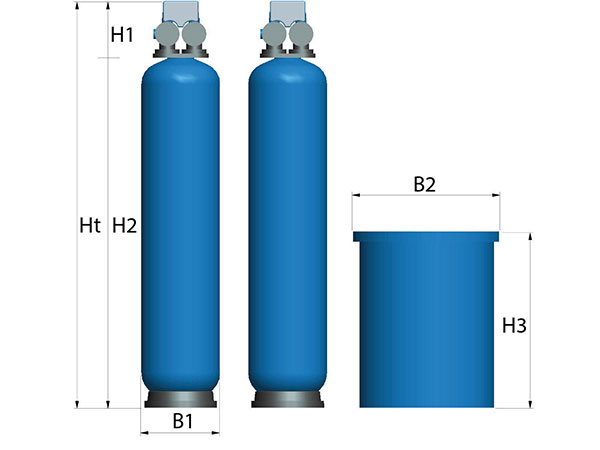

Dimensions (mm)
| Resin Litres | Valve H1 | Vessel H2 | Vessel B1 | BrineTank B2 | BrineTank H3 | Softener Ht | Inlet/Outlet |
|---|---|---|---|---|---|---|---|
| 225 | 370 | 1640 | 552 | 1230 | 860 | 2010 | 1½" |
| 300 | 370 | 1890 | 610 | 1230 | 860 | 2260 | 1½" |
| 350 | 370 | 1890 | 610 | 1230 | 860 | 2260 | 1½" |
| 500 | 370 | 2050 | 770 | 1230 | 860 | 2420 | 1½" |
Regeneration
Start:
- Meter Immediate
- Remote Start
Manual: Manual operation as required
Regeneration Water Usage
| Litres of Resin | 225 | 300 | 350 | 500 | |
|---|---|---|---|---|---|
| 1) Backwash | Litres | 323 | 570 | 570 | 950 |
| 2) Brining + Slow Rinse | Litres | 642 | 780 | 910 | 1300 |
| 3) Fast Rinse | Litres | 387 | 684 | 684 | 1140 |
| Total | 1352 | 2034 | 2164 | 3390 |
Resin
- Type: Strong acid cation resin – softening, food grade quality
- Life Span: 15 years under normal operating conditions
Ion Exchange
| Litres of resin | 225 | 300 | 350 | 500 | |
|---|---|---|---|---|---|
| Softener capacity as CaCO³ | 200ppm | 56.2m³ | 75m³ | 87.5m³ | 125m³ |
| 250ppm | 45m³ | 60m³ | 70m³ | 100m³ | |
| 300ppm | 37.5m³ | 50m³ | 58.3m³ | 83.3m³ | |
| Salt consumption | kg/reg | 27 | 36 | 42 | 60 |
Flow Rate
| Litres of resin | 225 | 300 | 350 | 500 |
|---|---|---|---|---|
| nominal m³/hr | 9 | 12 | 14 | 18 |
| minimum metered | 300 litres/hour | |||
