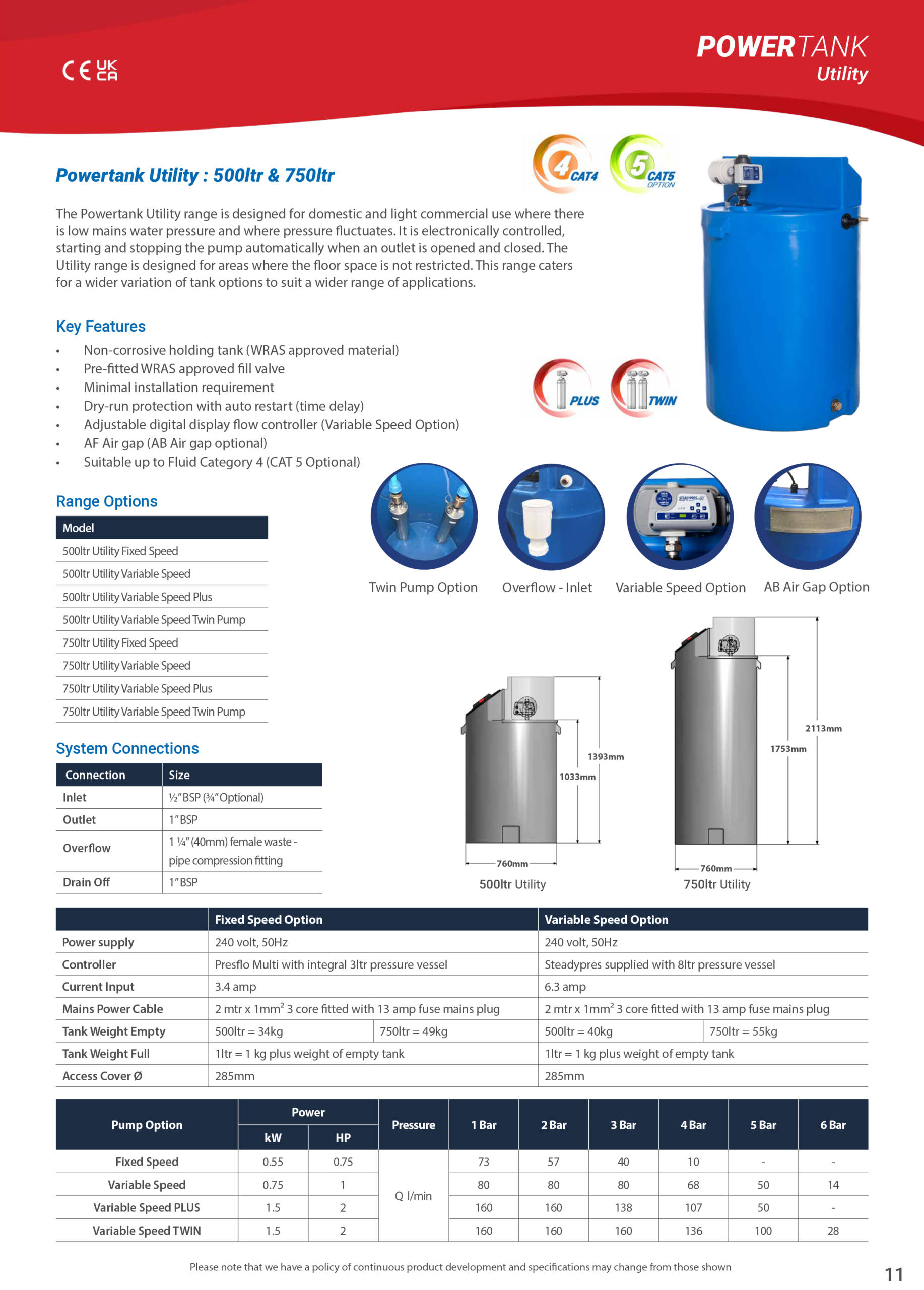

Powertank – Utility 500ltr & 750ltr

Price range: £825.00 through £2,718.00

The Powertank Utility range is designed for domestic and light commercial use where there is low mains water pressure and where  pressure fluctuates. It is electronically controlled, starting and stopping the pump automatically when an outlet is opened and  closed. The Utility range is designed for areas where the floor space is not restricted. This range caters for a wider variation of tank options to  suit a wider range of applications.

  • AF Air gap for Fluid Category 4 as standard (AB Air gap for Fluid Category 5 optional).
  • Plus Pressure and Plus Flow deliver enhanced performance over the standard variable speed, optimised for higher
    pressure or increased flow respectively.
  • The Twin option contains two pumps for double the flow rate.



Features

• Non-corrosive holding tank (WRAS approved material)
• Pre-fitted WRAS approved fill valve
• Minimal installation requirement
• Dry-run protection with auto restart (time delay)
• Adjustable digital display flow controller (Variable Speed Option)
• AF Air gap (AB Air gap optional)
• Suitable up to Fluid Category 4 (CAT 5 Optional)

- +
SKU N/A Category
ModelLengthWidthHeight
500ltr Utility Fixed SpeedN/A7601393
500ltr Utility Variable SpeedN/A7601413
500ltr Utility Variable Speed PLUS PRESSUREN/A7601413
500ltr Utility Variable Speed PLUS FLOWN/A7601413
500ltr Utility Variable Speed TWINN/A7601413
750ltr Utility Fixed SpeedN/A7601413
750ltr Utility Variable SpeedN/A7602133
750ltr Utility Variable Speed PLUS PRESSUREN/A7602133
750ltr Utility Variable Speed PLUS FLOWN/A7602133
750ltr Utility Variable Speed TWINN/A7602133
Fixed Speed OptionsVariable Speed Options
Power Suppy240 volt, 50Hz240 volt, 50Hz
ControllerPresflo Multi with integral 3ltr pressure vesselSteadypres supplied with 8ltr pressure vessel
Current Input3.4 amp6.3 amp
Mains Power Cable2 mtr x 1mm2 3 core fitted with 13 amp fuse mains plug 2 mtr x 1mm2 3 core fitted with 13 amp fuse mains plug
Tank Weight Empty 500ltr - 34kg / 750ltr - 49kh500ltr - 40kg / 750ltr - 55kg
Tank Weight Full1ltr = 1 kg plus weight of empty tank1ltr = 1 kg plus weight of empty tank
Access Cover285mm 285mm
Pump OptionPower kWPowe HPPressure1 Bar2 Bar3 Bar4 Bar5 Bar6 Bar
Fixed Speed0.550.75Q l/min73574010--
Variable Speed0.751Q l/min808080685014
Variable Speed PLUS1.52Q l/min16016013810750-
Variable Speed TWIN1.52Q l/min16016016013610028
