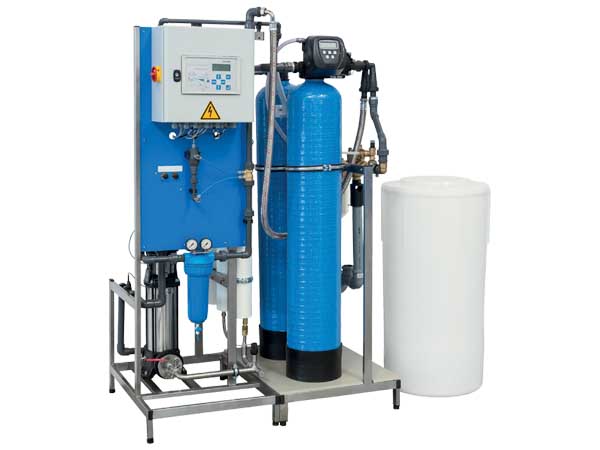

Herco Vertical Frame Unit UO-D CD Series
Price range: £16,350.00 through £21,340.00
Ready to connect system including pre-treatment for desalination of drinking water according to drinking water regulations (free chlorine not detectable).
Due to intregrated water pre-treatment components such as pre-filter, backflow preventer, duplex water softener and limitron hardness monitoring unit a piping on site is not necessary. Only 4 connections required (drinking water, permeate, waste water and mains connection). Continuous production of permeate possible.
Dimensions (mm)
| Item Name | Permeate Flow l/h | Membranes |
|---|---|---|
| UO-D 600 CD | 600 | 4040 x 2 |
| UO-D 900 CD | 900 | 4040 x 3 |
| UO-D 1200 CD | 1200 | 4040 x 4 |
| UO-D 1500 CD | 1500 | 4040 x 5 |
| UO-D 2000 CD | 2000 | 4040 x6 |
Features
- Skid mounted
- Duplex Softener Clack Cl Twin 2 x 50L (600-900l/h) or 2 x 100L (1200-2000l/h) mono resins
- RO Digital controller
- Recovery from 75% to 80%
- Salt rejection percentage: min 97%
- working pressure: 14 bar
- Voltage: 3 xz 400V / 50 Hz
- Digital flow meters
