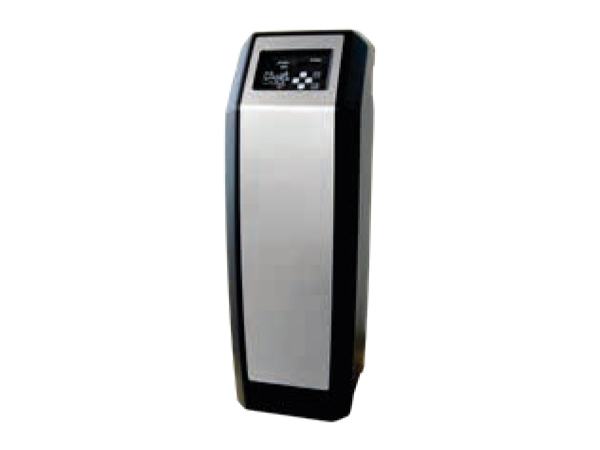

Herco UO-D Compact Unit
Price range: £4,630.00 through £5,100.00
For desalination of softened drinking water according to drinking water regulations (free chlorine not detectable).
Compact unit suitable for wall mounting or fixation on the floor.
Applications
- Desalination of softened water
- Suitable for all commercial and industrial applications
- Ideal for medical practices or other public locations with visitors
Features
• Wall mounted or free standing
• Particularly space-saving (400 x 340 x 1190 mm)
• RO Digital controller
• Recovery from 75% to 80%
• Salt rejection percentage: min. 97%
• Working pressure: 12 bar
• Voltage: 230 V/50 Hz
• Digital flow meters
General Conditions for Installation
The unit may only be used for the desalination of softened feed water of drinking water quality or appropriately pretreated well or surface water. The unit is designed for a salinity (TDS) of 1,000 mg/l and a temperature of 15 °C. Under
these conditions, the projected permeate output is achieved even after three years of operation. The permeate yield depends on the raw water quality and the pre-treatment. The following parameters must be maintained in the feed water:
- Free chlorine not detectable
- Iron (Fe) < 0.2 mg/l
- Manganese (Mn) < 0.05 mg/l
- Silica (SiO2) < 25 mg/l
- Silt density index (SDI) < 3
- Feed water temperature 5 – 35 °C
- Feed water pressure 3 – 6 bar
- Pressure fluctuation ± 0.5 bar
Item Name Permeate Flow L/H Membranes
UO-D 120 120 4021 x1
UO-D 300 300 4040 x 1
UO-D 500 500 4040 x 2
