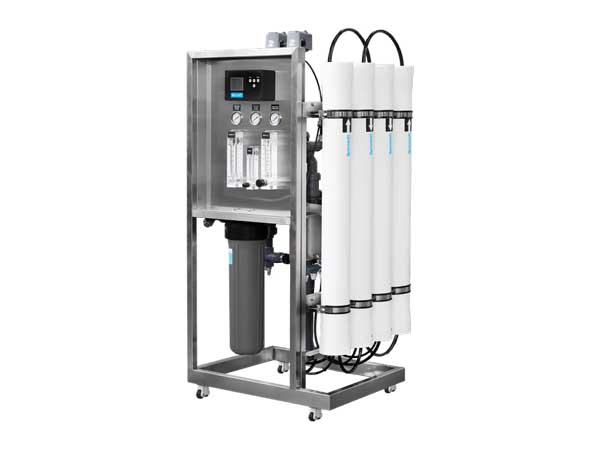

Ecosoft Inox IoT MO24000 4″ Reverse Osmosis System
Price range: £10,120.00 through £11,785.00
Ecosoft Inox IoT MO24000 4″ reverse osmosis system is the most popular model for small-scale production within the Ecosoft Inox IoT series. The system delivers up to 24,000 litres of purified water per day. The stainless steel frame and fasteners ensure long service life, reliability, and a modern, professional appearance.
Pre-designed and convenient options for permeate flushing and blending assembly enable the system to handle any water treatment task, even with complex feed water. The robust design and high-quality components ensure continuous 24/7 operation. Its open-frame construction allows quick and easy maintenance access, while the Ecosoft OC6000 controller provides full customization to meet specific process requirements and operating conditions.
Permeate flushing extends the service life of membrane elements by up to 30% and significantly reduces the load on pre-filters. The blending assembly allows flexible mixing from any point within the purification system or even from an alternative water source.
A well-designed structure with a built-in power reserve makes this model an optimal solution for hotels, greenhouses, and livestock complexes. The MO24000TI6 is also a reliable choice for medium-sized businesses, including breweries, household chemicals, cosmetics, and car care product manufacturers. With the OC6000 controller, you stay in full control of your water quality at all times.
Features
- Flow capacity: 1000 L/h
- Ecosoft OC6000 controller with online access
- Stainless steel frame and fastenes to ensure a long service life
- Flexible flow adjustment for various feed water conditions
- Pre-designed options for tailor-made solutions
- Energy-efficient and quiet Grundfos® pump
Parameter/Specification
- Rated capacity 1,000 L/h
- Rated capacity 124,000 L/d
- Recovery up to 75%
- Inlet water TDS 3,000 ppm
- Membranes (pcs/type) 4/40×40
- Inlet water pressure 2…4 bar
- Operating pressure 8…12 bar
- Maximum pressure 14 bar
- Service feed flow 1,300-1,500 L/h
- Forward flush feed flow 4,200 L/h
- Water consumption for forward flush 70 L
- Inlet water temperature 5…30 °C
- Online access yes
- Controller menu languages EN, FR, UA, CZ
- Power supply 1 × 220–230 V
- Frequency 50 Hz
- Rated power 1.9 kW
- System dimensions (H × W × D) 1920 × 835 × 715 mm
- System weight 150 kg
- Permeate flow* 20 LPM
- Concentrate flow* 6.7 LPM
- Recycle flow* 32 LPM
- Operating pressure* 10.9 bar
* The data are indicated under the operating conditions of the system at feed water temperature of 25 °C, a salinity of 1,500 ppm, XLE PRO-4040 membrane element, the unit efficiency is 75%. The performance of your system may be different from these values depending on these factors, the chemical composition of the water and other factors
Parameter
- Pump: Grundfos® CM 3-14, high-energy efficiency (IE4, A+), low noise and vibration, AISI 304 – 1 pcs
- Membrane vessel: 300 psi – 4 pcs
- Electrical panel and controller: Ecosoft OC6000
- Conductivity cell (permeate)
- Conductivity cell (inlet water)
- Electronic flow meter (permeate)
- Sediment prefilter: BB20 – 1 pcs
- Sediment filter: PP melt-blown 4.5″ × 20″, 5 µm – 1 pcs
- Frame: Stainless steel – 1 pcs
- Inlet solenoid valve: Danfoss – 1 pcs
- Forward flush solenoid valve: Danfoss – 1 pcs
- Float switch – 1 pcs
- Pressure switch after sediment filter: adjustable
- Pressure switch on permeate line: adjustable
- Permeate rotameter: 5–35 LPM, non-adjustable
- Concentrate rotameter: 5–35 LPM, adjustable
- Permeate recycle: 10–50 LPM, adjustable
- Pressure gauge inlet before sediment filter: 10 bar
- Pressure gauge after sediment filter: 10 bar
- Operating pressure gauge: 16 bar
- Connection feed water: G 1
- Connection permeate: G 1
- Connection concentrate: G 1
- Connection ports for dosing pump: G ½
- Connection ports for permeate flush kit: G 1
- Connection ports for raw water blending kit: G ⅜
- Steam boilers
- Heating & cooling systems
- Brewery & Beverage production
- Livestock & Poultry Farms
- Glazing Factories
- Laundry & Car washing
