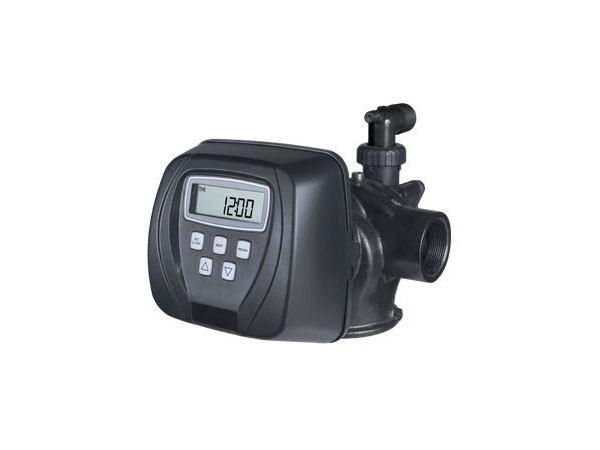

Clack WS2 Commercial & Industrial Valves
Price range: £1,210.00 through £1,744.00
The commercial/industrial line of control valves was also developed with direct input from customers and incorporate many of the features proven in the residential line of valves. Our WS2 valve provides flow rates up to 26.1 m³/hr. All WS2 valves are available with threaded connection or QuickConnect. QC allows to be use with flanges and side mounted solutions.
Available Timers
- EI (Easy International Controller)
- CI (Control International)
- Pallas CK
Features
- Time clock or metered
- Easy programming
- Piston type valve
- Easily serviceable
- Manually added salt alarm
The commercial/industrial line of control valves was also developed with direct input from customers and incorporate many of the features proven in the residential line of valves. Our WS2 valve provides flow rates up to 26.1 m³/hr. All WS2 valves are available with threaded connection or QuickConnect. QC allows to be use with flanges and side mounted solutions.
- Service flow rate @ 1 bar drop 26 m³/hr
- Backwash @ 1.7 bar drop 18 m³/hr
- Operating pressure 1.5 to 8.5 bar
- Water temperature 4°C to 43°C
- Tank thread 4 inch 8 UN
- In/out 2 inch F BSP
- Brine line ⅜ inch
- Riser tube diameter 50 mm
- Service flow rate @ 1 bar drop 28.4 m³/hr
- Backwash @ 1.7 bar drop 19.3 m³/hr
- Operating pressure 1.4 to 8.6 bar
- Water temperature 4°C to 43°C
- Tank thread 4 inch 8 UN, 6 inch flange or Side mount
- In/out 2 inch F BSP or NPT
- Riser tube diameter 63 mm
