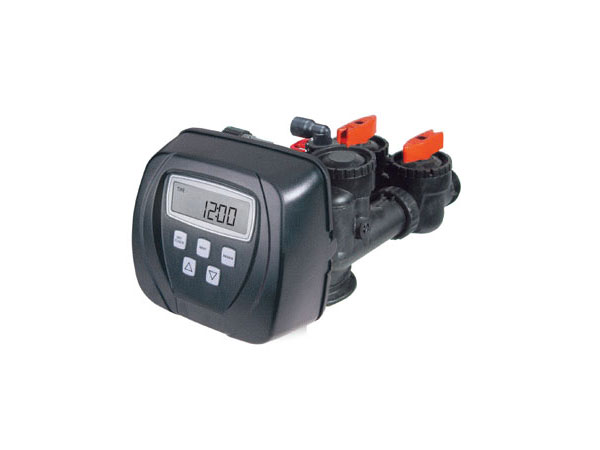

Clack WS1 TC & Cl Residential & Commercial Valves
Price range: £225.00 through £304.00
Clack’s WS1 Automatic valve is a state of the art control head designed for residential and commercial applications requiring flow rates up to 6.1m³/hr. It has a backwash ability capable of servicing up to 21″ diameter tanks.
The valve acts as a primary centre that directs and regulates all cycles of water softening or filtration. It can be set to perform downflow regeneration or simply wash and rinse.
The valve comes in different program versions and is controlled by a solid state microprocessor with front panel setting and screen display.
The WS1 has 9 injector sizes to choose from for different draw rates.
Available Timers
- TC (Time Control Electric)
- CI (Clack International)
Features
- Time clock or metered
- Easy programming
- Piston type valve
- Easily serviceable
- Manually added salt alarm
All WS1 Valves are equipped with a transformer 220/240 – 12 volt European adapter and 4,5 meter power cord.
All WS1 Valves standard with white injector and DLFC ¾” – 2.7 gpm (10” tank size)
For vessels > 21” or backwash flow > 10 gpm (38 lpm) valve you must order:
- 1” drain connection (code: 5303024083) + 1” DLFC (53030224xx or 53030225164)
- Injectors and Drain Line Flow Controls for other tanks can be ordered.
Included in delivery: top distributor + in/out connectors in Noryl 1” BSPT
Not included: Bypass
- Service flow rate @ 1 bar drop 6.1 m³/hr
- Backwash @ 1.7 bar drop 6.1 m³/hr
- Operating pressure 1.5 to 8.5 bar
- Water temperature 4°C to 43°C
- Tank thread 2.5 inch
- In/out 1 inch BSP
- Brine line ⅜ inch
- Riser tube diameter 1.05 inch
