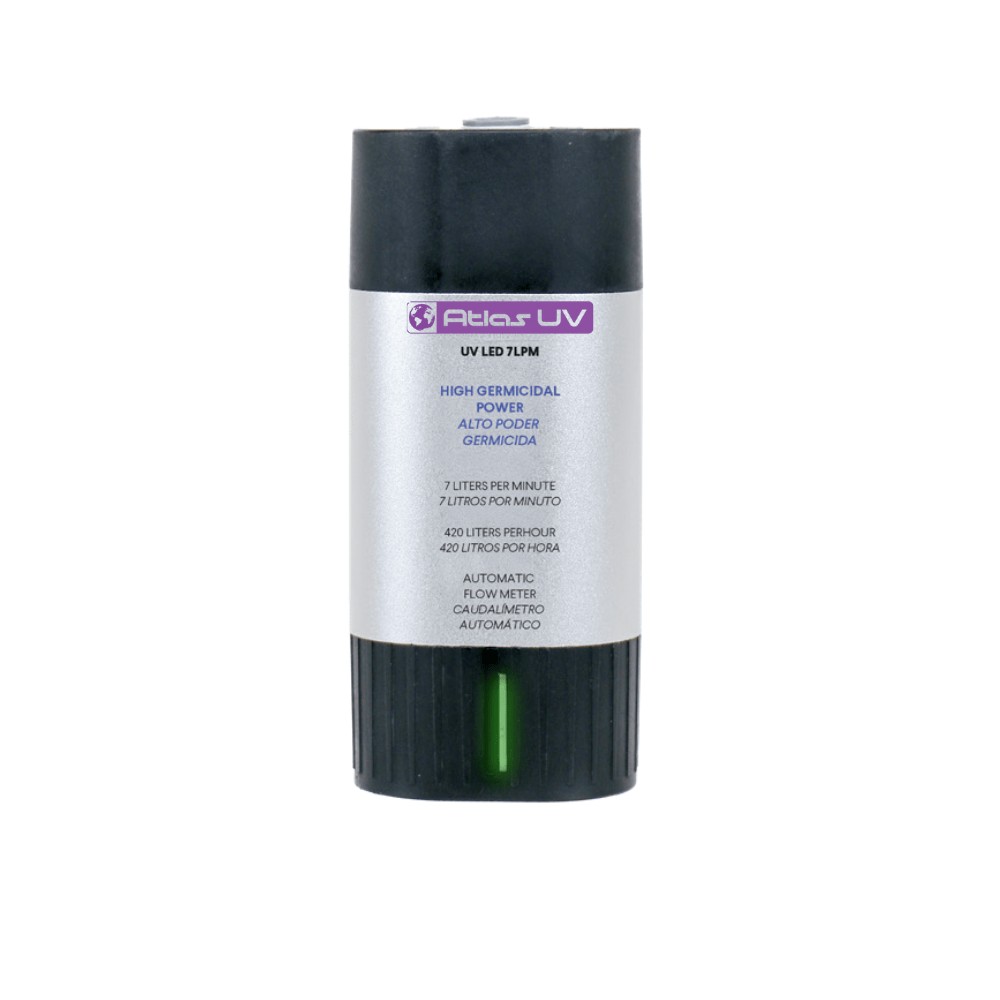

Atlas UV LED 7L/min unit
£350.00
The Atlas LED 3/8″ – 7L/min is ithe deal equipment for the elimination of germs and microorganisms from water supplied by UV-C radiation.
It works by:
- Passing water through a chamber containing UV-C LEDs.
- The UV light damages the DNA/RNA of microorganisms such as bacteria, viruses, and protozoa, preventing them from reproducing and causing disease.
- Treating water without adding chemicals or changing the taste or smell.
A 7 L/min unit is typically suitable for:
- A single tap or drinking water outlet.
- Small homes, caravans, boats, or cabins.
- Point-of-use water treatment systems.
It’s important to note that a UV steriliser:
- Kills or inactivates microorganisms, but
- Does not remove dirt, sediment, heavy metals, chemicals, or improve cloudy water. If the water isn’t already clear, it’s usually installed after a sediment filter.
Ideal equipment for the elimination of germs and microorganisms from water supplied by UV-C radiation.
Features
- Built-in flow switch.
- It is activated when water flows and deactivated when water flow stops.
- Does not heat the water.
- Built-in LED status control.
- For installations with 1/4” pipe, ask for the 3/8” - 1/4” reduction (Ref. 951014).
General Conditions for Installation
- Main Material - PP, Aluminium alloy
- Electrical Supply - 100V-240V 50/60Hz
- Power - 10.5W
- Output Voltage - 24 Vdc 1A
- Working Temperature - 2°C—65°C
- Pressure - 0.8 MPa
- Connections - 3/8”
- Working flow of osmosed water - 7 L/min
- Working flow of filtered water - 3-5 L/min
- Minimum flow required - 0.5 L/min
- Sterilization Rate - >99.9 (E.Coli) @ <7 LPM
- Service Life - 3000Hrs
- Grade Waterproof - X7
