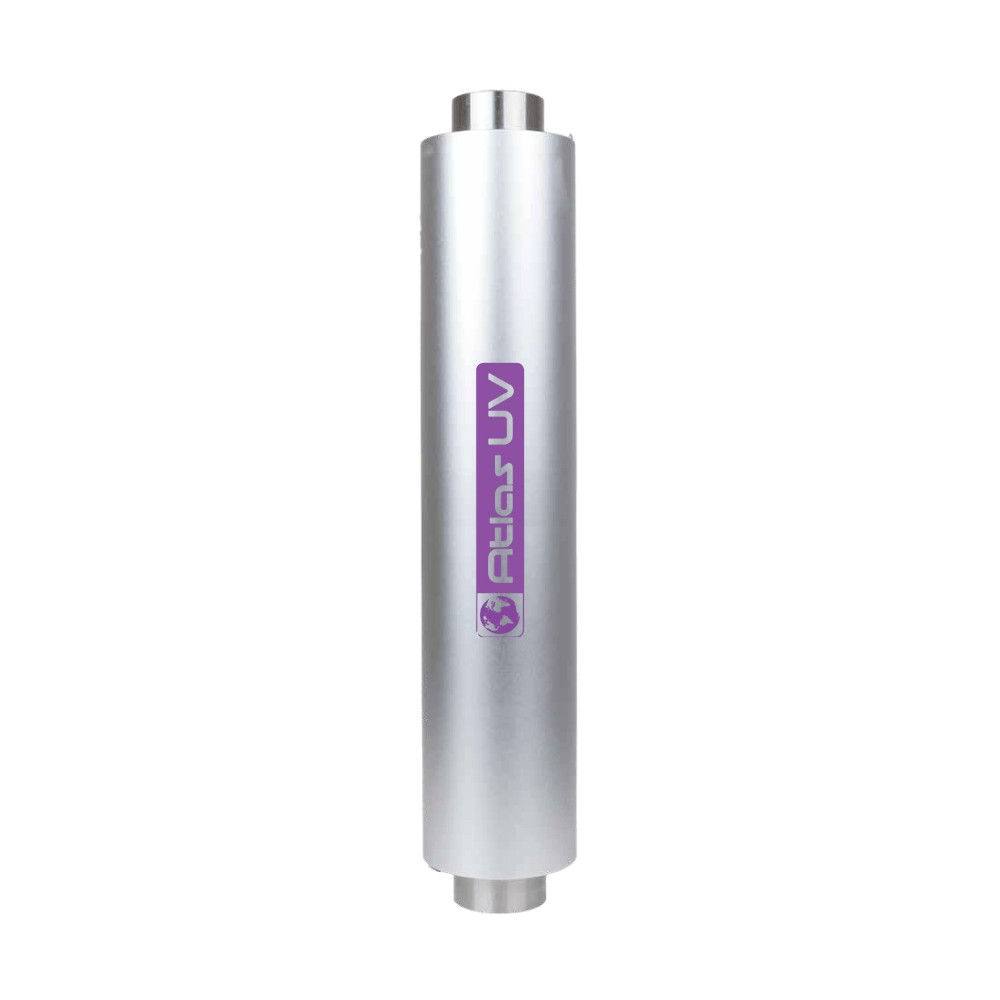

Atlas UV LED 50L/min unit

The Atlas LED 50 L/min is the largest model in the Atlas LED UV steriliser range. It is designed for high-demand domestic and commercial water systems, providing chemical-free disinfection of drinking water using UV-C LED technology. It can inactivate up to 99.9% of bacteria, viruses, and protozoa without affecting the taste, smell, or composition of the water. (UV Water Filter UK)

Here’s how it compares with the other models:

Key features of the 50 L/min model include:

• Maximum flow rate: up to 50 L/min for reverse osmosis water, or around 37 L/min for conventionally filtered water.
• Flow-activated operation: the UV LEDs only switch on when water is flowing, reducing power consumption and extending LED life.
• Minimum activation flow: 7 L/min.
• 1-inch BSPP (G1) connections for high-flow installations.
• Stainless steel and aluminium construction, rated for up to 20 bar operating pressure.
• Operates with water temperatures from 5°C to 55°C.

Typical applications include:

• Whole-house water treatment for large properties.
• Commercial kitchens and restaurants.
• Hotels and hospitality.
• Dental and healthcare facilities.
• Laboratories.
• Food and beverage production.
• Post-treatment for reverse osmosis systems.

Like all UV sterilisers, it:

•  Inactivates microorganisms such as bacteria, viruses, and protozoa.
•  Uses no chemicals and produces no by-products.
•  Does not remove sediment, heavy metals, chlorine, or dissolved chemicals.
•  Requires clear, pre-filtered water for effective UV disinfection.

The 50 L/min model is intended for installations with much higher water demand than the 7, 15, or 25 L/min versions. For a typical family home, the 15 L/min or 25 L/min model is usually sufficient, while the 50 L/min model is better suited to large homes with multiple simultaneous users or commercial applications.
