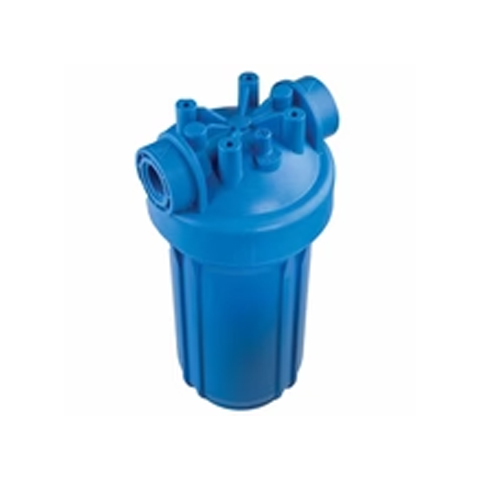

Atlas 10″ and 20″ Big Filter Housing
Price range: £75.00 through £83.00
4.25″ diameter
Atlas large capacity housings suitable for high flow and heavy sediment applications. It allows greater cartridge capacity and reduces the number of filter containers required.
Features
- Mono/single models also available with gauges (single housings only) and drains.
- Suitable for cartridges with 2.5”OD. -All models fit to both double open-ended and to double O-ring cartridges.
- Available in 5”, 7”, 10” and 20” lengths. - Clear, blue and white sumps with a pressure rating at 125 psi.
- NPT connection ports 1/4”, 1/2”, 3/4” and 1”.- NPT connection and Stainless Steel inserts 3/4” available for single models.
- Pressure-relief feature that includes an O-ring seal, no spring is used that can result in a water leak.
- Accessories available are filter wrench, single, double and triple wall mount brackets, lubricant for housing O-ring.
General Conditions for Installation
Working conditions for all versions of DP housings:
- Working pressure: Max 125 psi (8.6 bar)
- Working temperature range: Min 39.2°F (4°C) - Max 113°F (45°C)
Materials
- Heads: reinforced polypropylene
- Blue sumps: PET
- Clear sumps: PET
- O-rings: EPDM
